FSA4486UCX - onsemi

Description: Power Supply Vcc: 2.7 V to 5.5 V; OVP Function on Common Node Pins; 20 V DC Tolerance on CC_IN; 20 V DC Tolerance on Connector Side Pins: DP_R, DN_L, GBSUx, SBUx; Moisture/Resistance Detection on DP_R, DN_L and SBUx; 1.2v/1.8v Capable I2C Interface; 1:3 USB Switch with Third Data Path; Two I2C Address; Over Current Protection for Analog Ground Switch; Analog Audio Device Unplug Detection and Can Be Used as General Comparator Also; High Performance Audio/USB SW: ♦ Audio SW, THD+N < −110 dB; 1 VRMS, 32 ? Load

Download FSA4486UCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

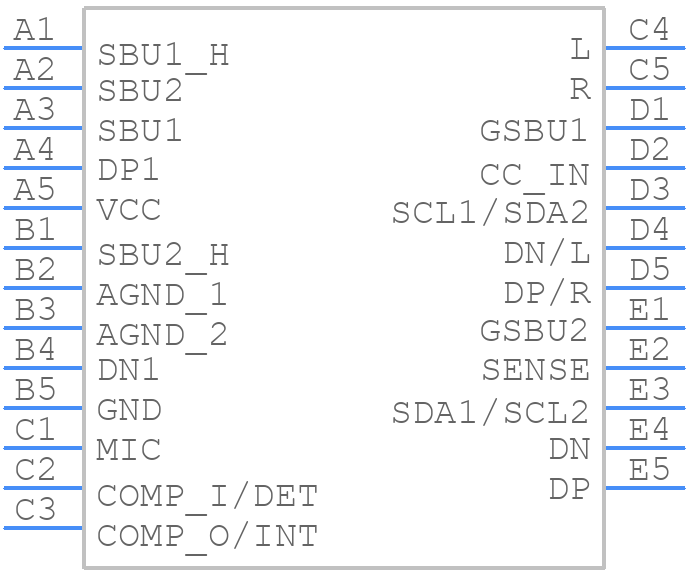

FSA4486UCX - onsemi - PCB symbol
click to zoom
PCB Footprints
FSA4486UCX - onsemi PCB footprint - BGA - BGA - WLCSP25 2.24x2.28x0.586_2024
click to zoom
3D Models
FSA4486UCX - onsemi - 3D model - BGA - WLCSP25 2.24x2.28x0.586_2024
click to zoom

FSA4486UCX Details

  • Manufacturer Part Number:

    FSA4486UCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-25

  • Manufacturer Package Code:

    567UZ

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS
