A good PCB layout for the FSA636UCX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a common ground point for the input and output capacitors.
To ensure the FSA636UCX operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage and output current are within the recommended operating ranges.
The recommended input capacitor value for the FSA636UCX is 1-10uF, with a voltage rating of 10-16V. A ceramic or X5R/X7R dielectric capacitor is recommended due to its low ESR and high reliability.
To troubleshoot issues with the FSA636UCX, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and the PCB layout is correct. Check for any signs of overheating, and ensure the device is properly cooled. If the issue persists, consult the datasheet and application notes for further guidance.
The FSA636UCX is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. If you need to operate the device in a high-temperature environment, ensure proper cooling and consider derating the device's performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FSA636UCX Overview

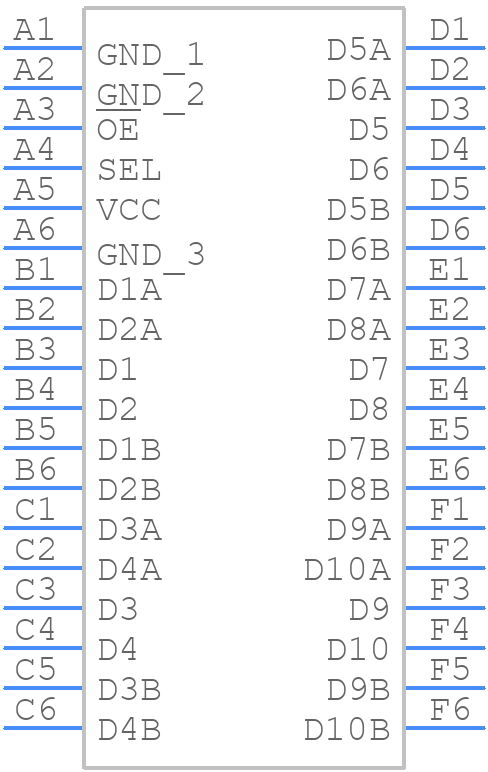

Use the download button to access the FSA636UCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSA63,
or try a keyword search, such as Other Interface ICs
