A good PCB layout for the FSA660TMX involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and connect the VEE pin to a stable -5V or -3.3V power supply. The VREF pin should be connected to a stable voltage reference, and the EN pin should be tied to a logic high or low depending on the desired enable state.
The FSA660TMX can support data rates up to 6 Gbps, but the actual achievable data rate depends on the specific application, PCB layout, and signal integrity.
The FSA660TMX has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or thermal pad, and ensure good airflow around the device. Avoid blocking the airflow around the device, and use thermal interface materials with high thermal conductivity.
The FSA660TMX has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FSA660TMX Overview

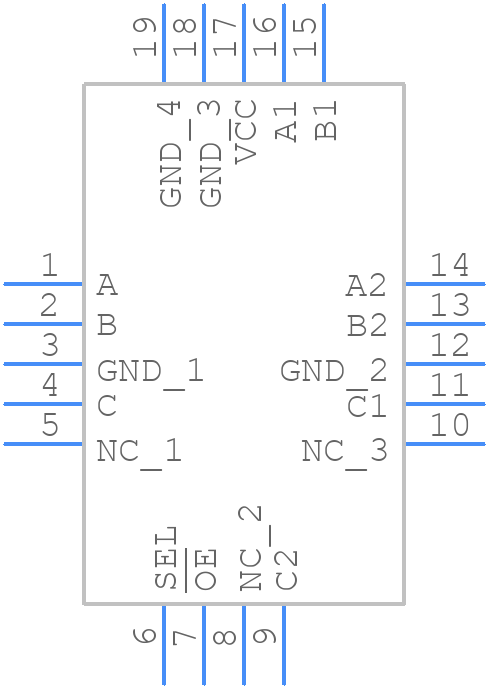

Use the download button to access the FSA660TMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSA66,
or try a keyword search, such as Multiplexers or Switches
