A good PCB layout for the FSA8039AUMSX should prioritize minimizing parasitic inductance and capacitance. Keep the input and output traces short and wide, and use a solid ground plane to reduce noise. Place the input and output capacitors close to the device pins, and use a common mode choke or ferrite bead to filter out high-frequency noise.
To ensure the FSA8039AUMSX operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Use thermal management techniques such as heat sinks or thermal pads to keep the junction temperature below 150°C. Ensure the input voltage is within the recommended range of 2.7V to 5.5V, and the output current does not exceed 1A.
The recommended input capacitor value for the FSA8039AUMSX is 1uF to 10uF, with a voltage rating of at least 6.3V. A low-ESR ceramic capacitor such as X5R or X7R is recommended to minimize voltage ripple and ensure stable operation.
To troubleshoot issues with the FSA8039AUMSX, start by checking the input voltage and output current to ensure they are within the recommended ranges. Verify that the device is properly soldered and the PCB layout is correct. Use an oscilloscope to check for voltage ripple or oscillations, and a thermal camera to identify hotspots. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
The FSA8039AUMSX is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. If you need to operate the device in a high-temperature environment, ensure that you provide adequate thermal management and derate the output current accordingly. Consult the datasheet and application notes for guidance on high-temperature operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FSA8039AUMSX Overview

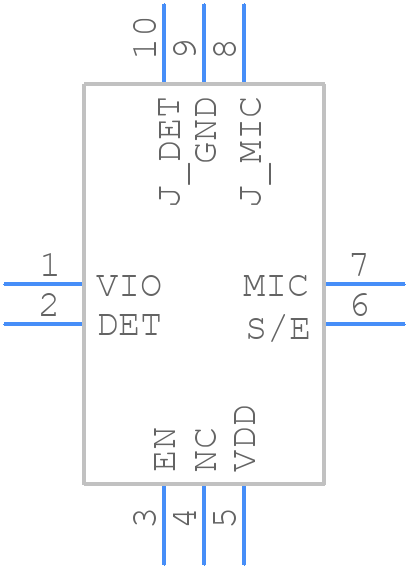

Use the download button to access the FSA8039AUMSX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSA80,
or try a keyword search, such as Other Consumer ICs
