Description:UL Certified No. E209204 (UL1557); Optimized for over 10 kHz Switching Frequency; 500 V FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection; Built-In Bootstrap Diodes Simplify PCB Layout; Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing; Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input; Optimized for Low Electromagnetic Interference; HVIC Temperature-Sensing Built-In for Temperature Monitoring; HVIC for Gate Driving and Under-Voltage Protecti
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for airflow.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper soldering techniques.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
When selecting an input capacitor for the FSB50250BS, consider the voltage rating, capacitance value, and ESR (Equivalent Series Resistance). A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1-10 μF. The ESR should be as low as possible to minimize energy losses.
Not using a bootstrap capacitor in the circuit can lead to reduced performance, increased power losses, and potentially even device failure. The bootstrap capacitor helps to maintain the high-side driver voltage, ensuring proper operation of the device. Omitting it can cause the high-side driver to malfunction or fail.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FSB50250BS Overview

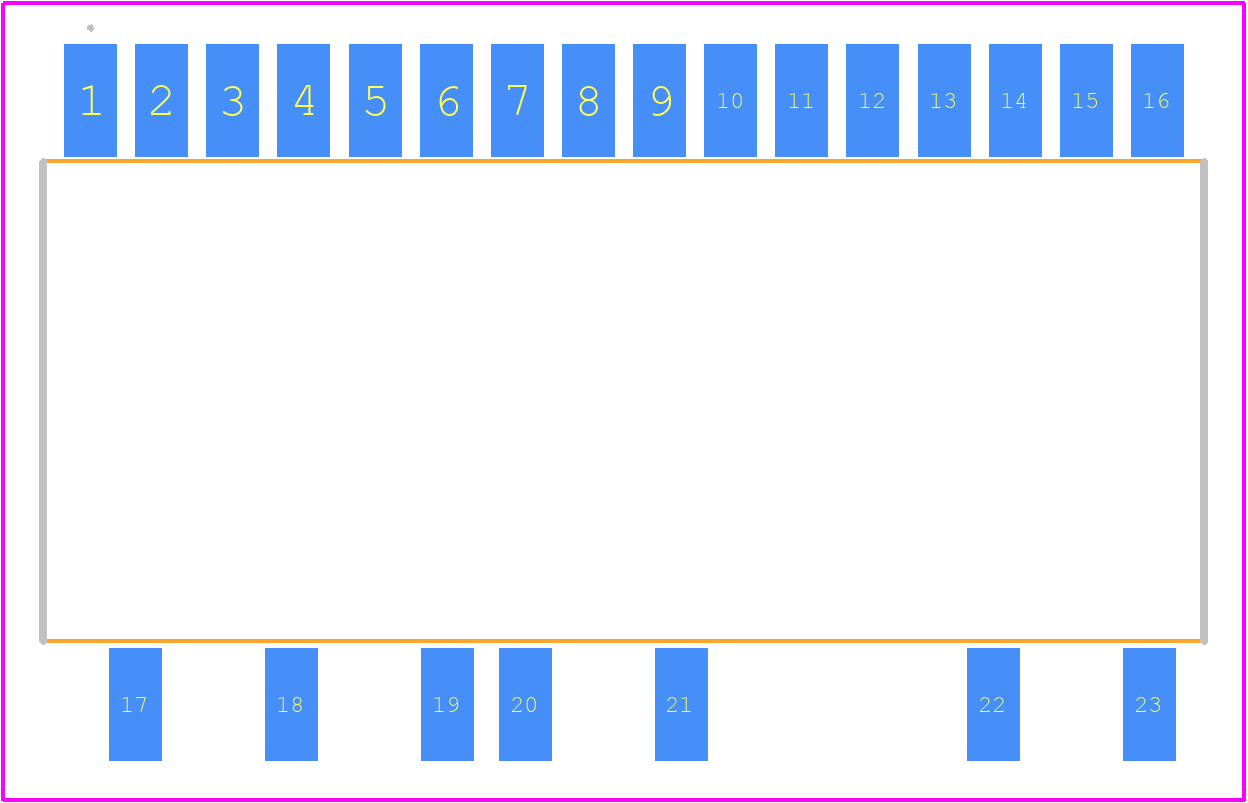

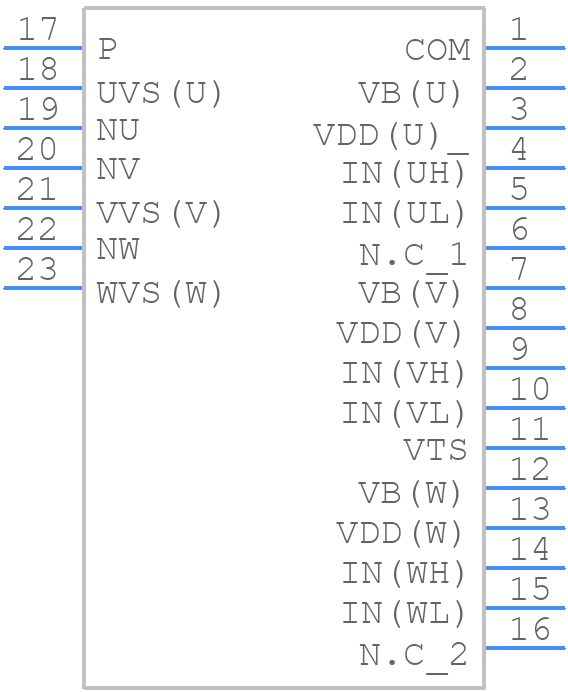

Use the download button to access the FSB50250BS schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FSB50,
or try a keyword search, such as Motion Control Electronics
