FSB50450B - onsemi

Description: 500 V FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection; Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing; Optimized for Low Electromagnetic Interference; HVIC Temperature-Sensing Built-In for Temperature Monitoring; Isolation Rating: 1500 Vrms / min.; HVIC for Gate Driving and Under-Voltage Protection; Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input; Built-In Bootstrap Diodes Simplify PCB Layout; UL Certified No. E209204 (UL1557); RoHS Co

Download FSB50450B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

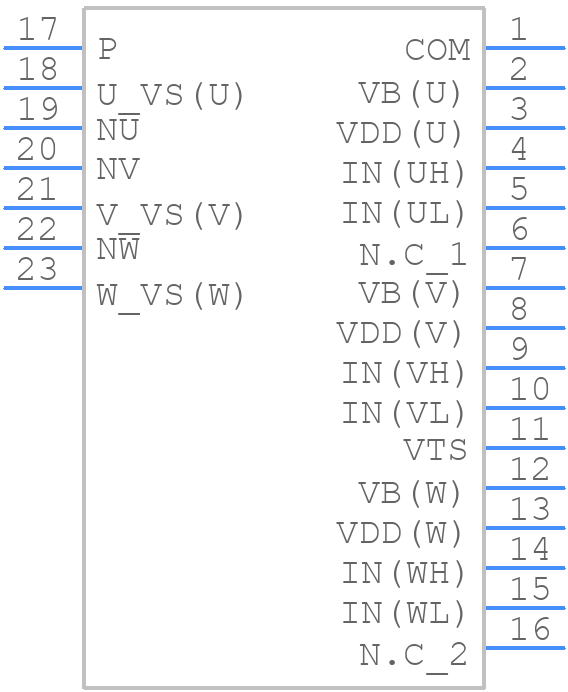

Symbol
FSB50450B - onsemi - PCB symbol
click to zoom

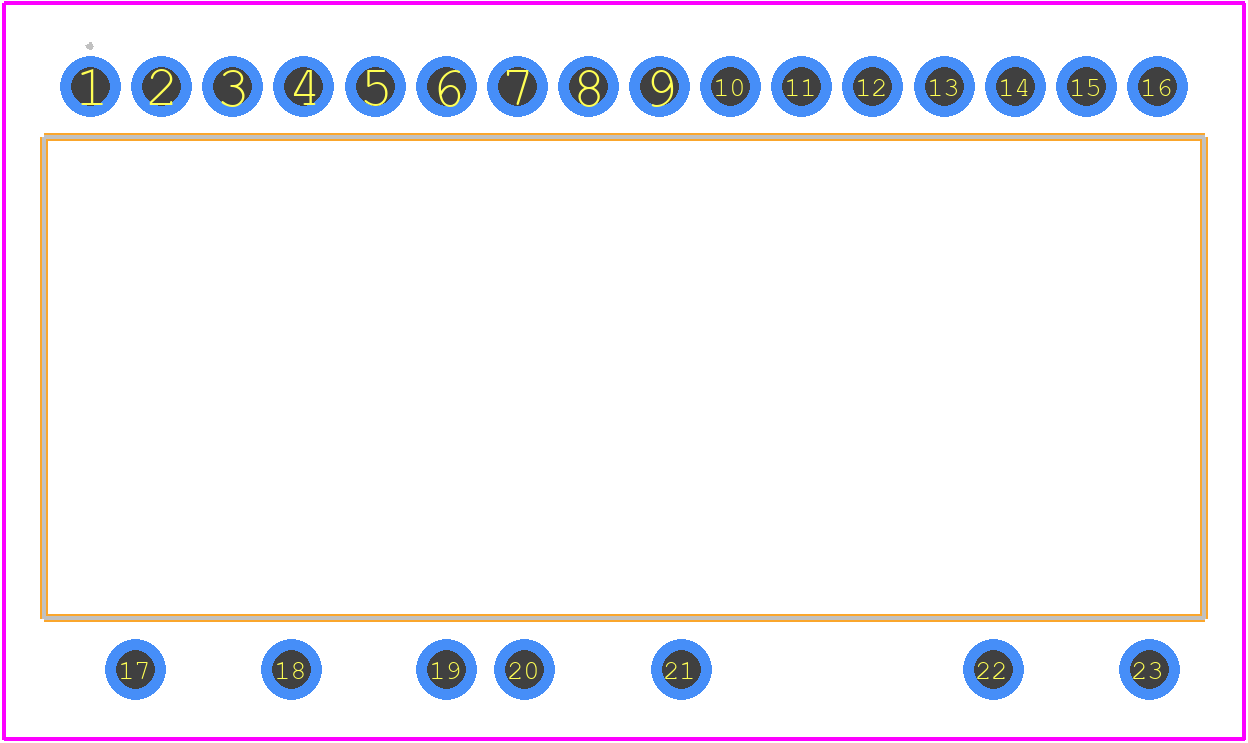

PCB Footprints
FSB50450B - onsemi PCB footprint - Other - Other - FSB50450B
click to zoom
3D Models
FSB50450B - onsemi - 3D model - Other - FSB50450B
click to zoom

FSB50450B Details

  • Manufacturer Part Number:

    FSB50450B

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP-023

  • Package Description:

    SPM5P-23

  • Manufacturer Package Code:

    MODEJ

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    CONTROL SUPPLY VOLTAGE(VCC)= 15V

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDMA-T23

  • JESD-609 Code:

    e3

  • Length:

    29 mm

  • Number of Functions:

    1

  • Number of Terminals:

    23

  • Output Current-Max:

    5 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    3.3 mm

  • Supply Voltage-Max (Vsup):

    400 V

  • Supply Voltage-Nom (Vsup):

    300 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    12 mm

FSB50450B Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the FSB50450B is 150°C, but it's recommended to keep it below 125°C for reliable operation.
  • To ensure proper biasing, make sure to follow the recommended voltage and current ratings, and use a suitable bootstrap capacitor (CBOOT) to maintain a stable voltage supply.
  • For optimal thermal performance, use a multi-layer PCB with a solid ground plane, and ensure good thermal conduction to the heat sink. Keep the component placement and routing symmetrical to minimize electromagnetic interference (EMI).
  • Yes, the FSB50450B is designed for high-frequency switching applications up to 1 MHz. However, ensure that the layout and component selection are optimized for high-frequency operation to minimize losses and EMI.
  • Use a suitable overvoltage protection (OVP) circuit and overcurrent protection (OCP) mechanism, such as a current sense resistor and a comparator, to detect and respond to fault conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FSB50450B Overview

Use the download button to access the FSB50450B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSB50, or try a keyword search, such as Motion Control Electronics
