Description:UL Certified No. E209204 (UL1557); Optimized for over 10 kHz Switching Frequency; 500 V FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection; Built-In Bootstrap Diodes Simplify PCB Layout; Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing; Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input; Optimized for Low Electromagnetic Interference; HVIC Temperature-Sensing Built-In for Temperature Monitoring; HVIC for Gate Driving and Under-Voltage Protecti
A recommended PCB layout for optimal thermal performance would be to have a solid copper plane on the bottom layer, with multiple vias connecting it to the top layer, and a thermal relief pattern around the device. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and consider derating the device's current handling capability. Additionally, ensure that the PCB is designed with high-temperature materials and components.
Although the datasheet specifies a recommended operating voltage range, the maximum allowed voltage on the VCC pin is typically 20V, but it's recommended to operate within the specified range (5V to 15V) for optimal performance and reliability.
Yes, the FSB50550BSL is suitable for high-frequency switching applications. However, it's essential to consider the device's switching characteristics, such as rise and fall times, and ensure that the PCB layout is optimized for high-frequency operation.
To protect the device from electrical overstress (EOS), it's recommended to use a transient voltage suppressor (TVS) or a zener diode on the input pins, and ensure that the PCB has adequate clearance and creepage distances to prevent electrical arcing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FSB50550BSL Overview

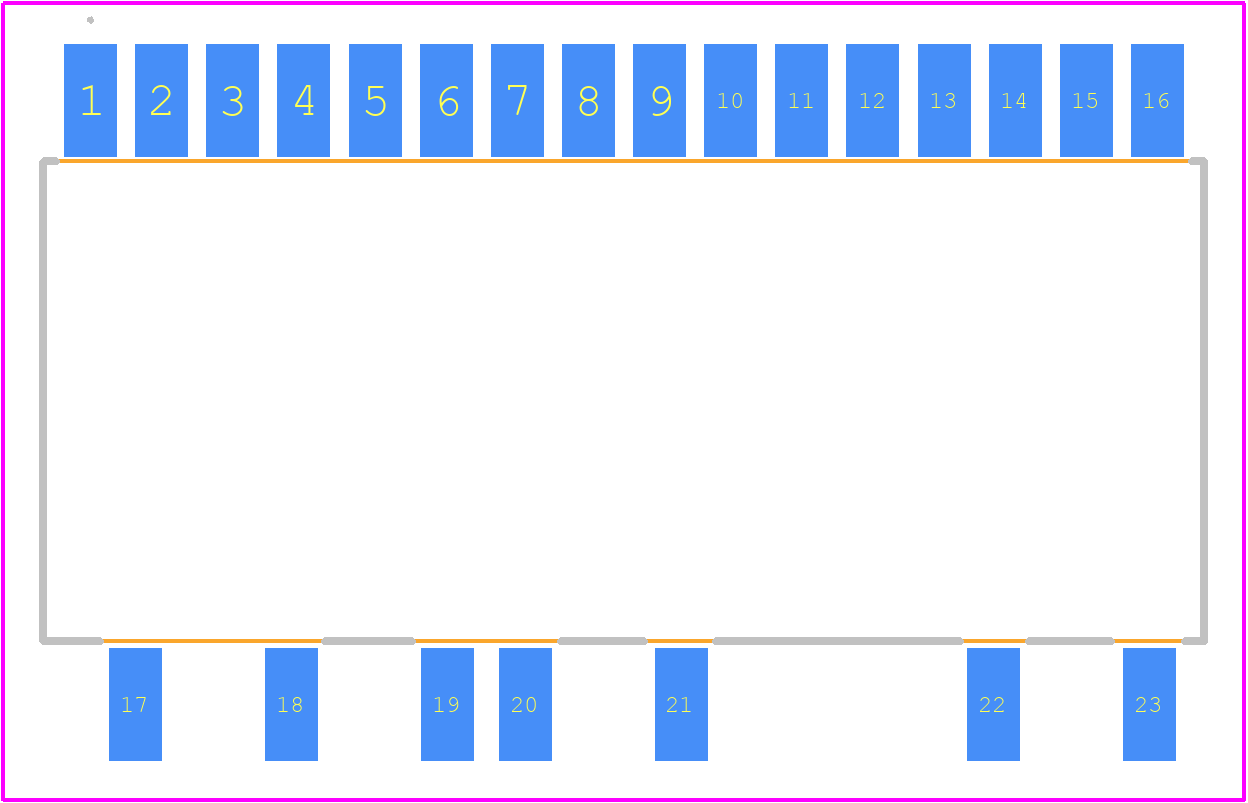

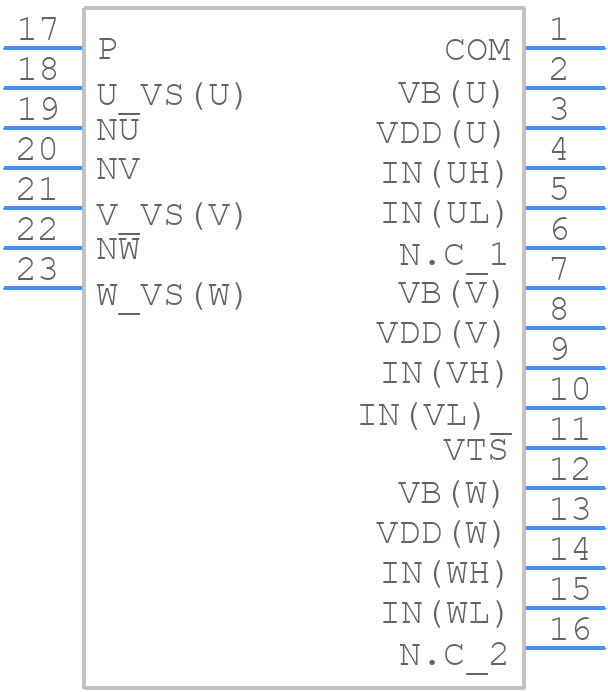

Use the download button to access the FSB50550BSL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FSB50,
or try a keyword search, such as Motion Control Electronics
