FSBF10CH60BT - onsemi

Description: Power Driver Module IGBT 3 Phase 600 V 10 A 27-PowerDIP Module (1.205", 30.60mm)

Download FSBF10CH60BT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

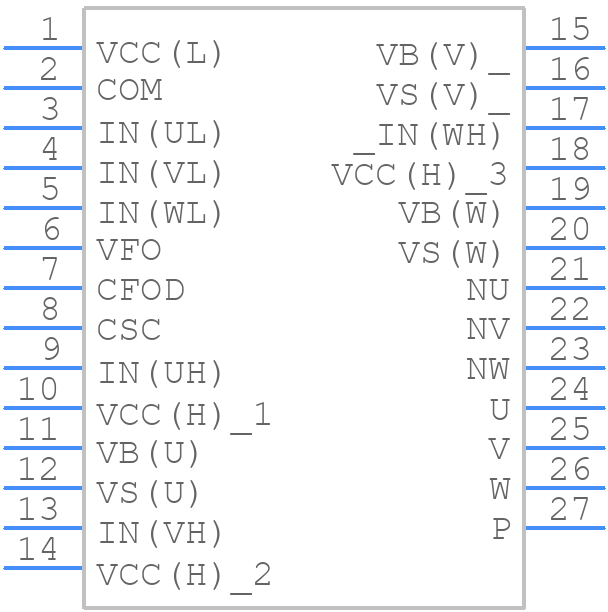

FSBF10CH60BT - onsemi - PCB symbol
click to zoom
PCB Footprints

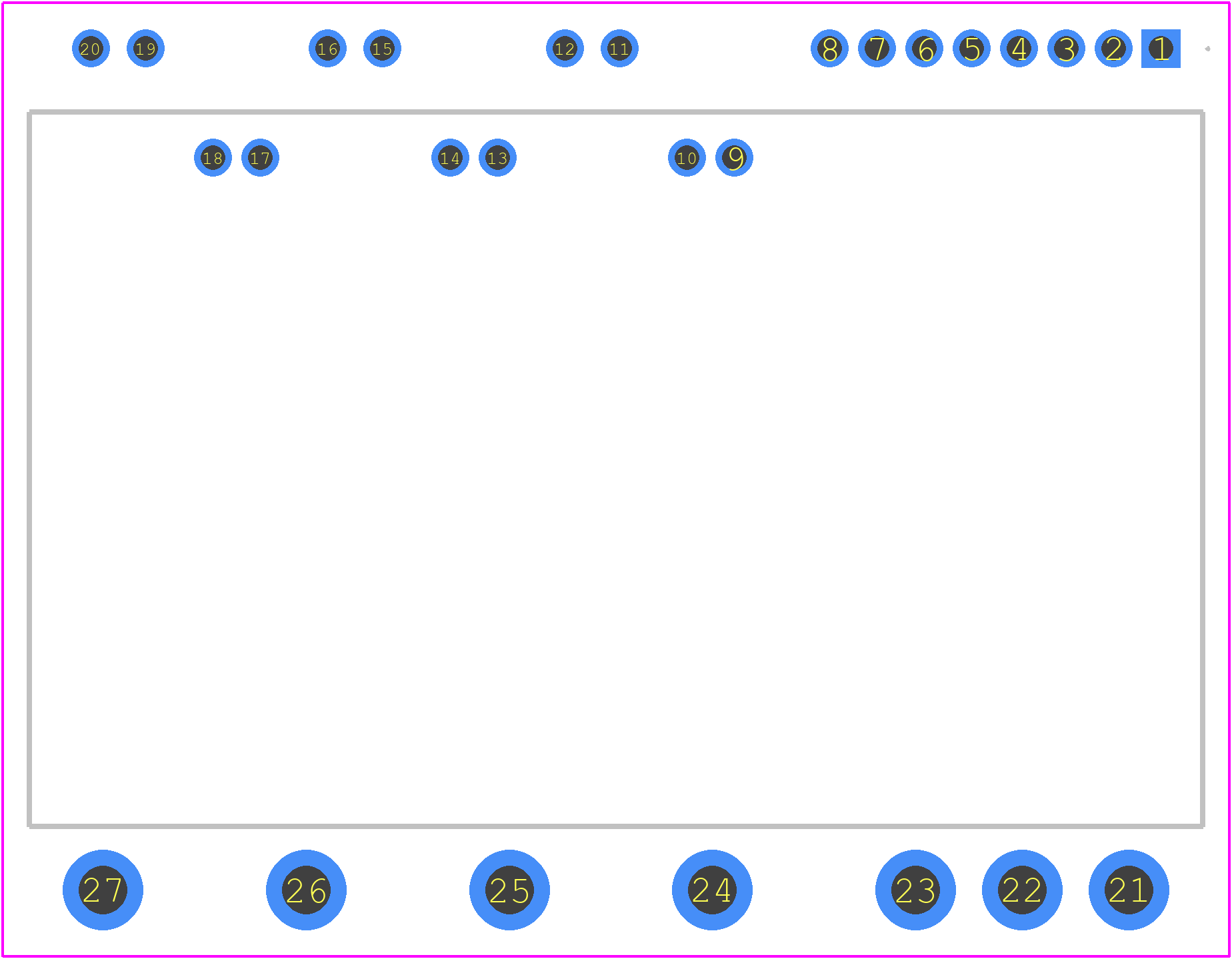

FSBF10CH60BT - onsemi PCB footprint - Other - Other - SPMJA-027
click to zoom
3D Models
FSBF10CH60BT - onsemi - 3D model - Other - SPMJA-027
click to zoom

FSBF10CH60BT Details

  • Manufacturer Part Number:

    FSBF10CH60BT

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SPMJA-027 / 27LD, PDD STD, FULL PACK TYPE

  • Package Description:

    Module-27

  • Manufacturer Package Code:

    MODDP

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDMA-T27

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    27

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

FSBF10CH60BT Frequently Asked Questions (FAQs)

  • The maximum junction temperature that the FSBF10CH60BT can withstand is 150°C.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 1°C/W is recommended. Additionally, ensure good airflow around the device and avoid blocking the heat sink fins.
  • The recommended gate resistor value for the FSBF10CH60BT is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
  • Yes, the FSBF10CH60BT is qualified to automotive and industrial standards, making it suitable for high-reliability applications. However, it's essential to follow proper design and testing procedures to ensure the device meets the required reliability standards.
  • To protect the FSBF10CH60BT from ESD, handle the device by the body or use an ESD wrist strap or mat. Ensure that the device is stored in an ESD-safe environment, and use ESD-protected packaging during transportation and storage.
