FSFR1800HS - onsemi

Description: Advanced Integrated Power Switch (FPS™) for 260W Half-Bridge Resonant Converter

Download FSFR1800HS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

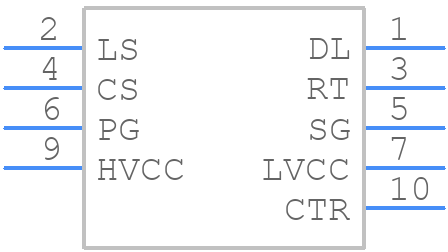

Symbol
FSFR1800HS - onsemi - PCB symbol
click to zoom

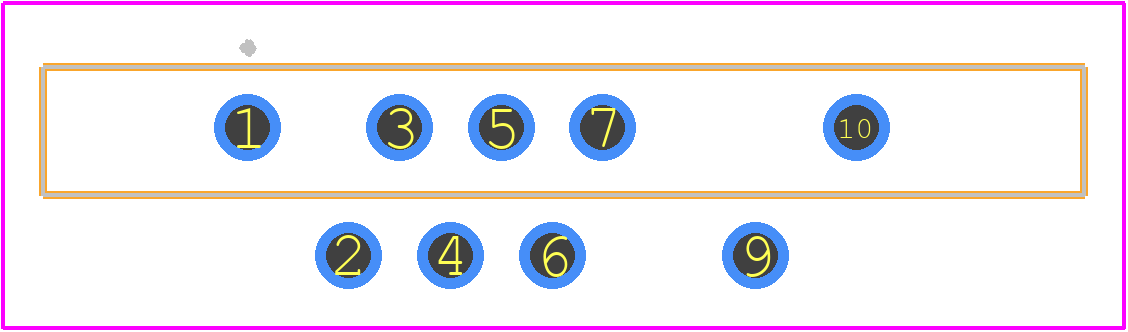

PCB Footprints
FSFR1800HS - onsemi PCB footprint - Other - Other - 9-LEAD-SIP_FFW
click to zoom
3D Models
FSFR1800HS - onsemi - 3D model - Other - 9-LEAD-SIP_FFW
click to zoom

FSFR1800HS Details

  • Manufacturer Part Number:

    FSFR1800HS

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SIP-9

  • Manufacturer Package Code:

    127EM

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    LOAD SWITCH

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FSFR1800HS Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FSFR1800HS is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended derating curves, ensure proper thermal management, and consider the device's power dissipation and thermal resistance.
  • A good PCB layout should include a solid ground plane, minimal thermal resistance, and adequate heat sinking. Consult the onsemi application note AN10495 for detailed guidelines.
  • Yes, the FSFR1800HS is suitable for high-frequency switching applications up to 1 MHz. However, ensure proper snubber design and consider the device's switching losses and thermal management.
  • Implement proper EOS and ESD protection measures, such as TVS diodes, resistors, and capacitors, and follow onsemi's recommended design guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FSFR1800HS Overview

Use the download button to access the FSFR1800HS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSFR1, or try a keyword search, such as Power Management Circuits
