FSFR2100USL - onsemi

Description: IC FPS POWER SWITCH 9-SIP

Download FSFR2100USL Model

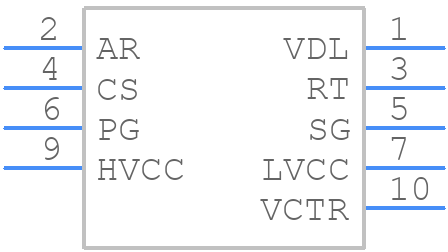

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FSFR2100USL - onsemi PCB footprint - Other - Other - 9-SIP
click to zoom
3D Models
FSFR2100USL - onsemi  - 3D model - Other - 9-SIP
click to zoom

FSFR2100USL Details

  • Manufacturer Part Number:

    FSFR2100USL

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SIP-9

  • Manufacturer Package Code:

    MOD09AD

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XZFM-T9

  • JESD-609 Code:

    e3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

FSFR2100USL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the FSFR2100USL involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper thermal management, it's recommended to attach a heat sink to the device, especially in high-power applications. The heat sink should be designed to provide a thermal resistance of less than 10°C/W. Additionally, the PCB should be designed to provide good thermal conduction, and the device should be placed in a well-ventilated area to prevent overheating.
  • The maximum allowed voltage on the enable pin (EN) of the FSFR2100USL is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or a voltage divider to ensure the enable pin voltage remains within the specified range.
  • Yes, the FSFR2100USL is qualified for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is designed to operate in harsh environments. However, it's recommended to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the FSFR2100USL, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input and output capacitors are of the correct value and type. Check for signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for troubleshooting guidelines, and contact onsemi's technical support if the issue persists.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FSFR2100USL Overview

Use the download button to access the FSFR2100USL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSFR2, or try a keyword search, such as Power Management Circuits
