FSL126MR - onsemi

Description: Low Operating Current: 1.8mA; Under-Voltage Lockout (UVLO); Adjustable Peak Current Limit; Internal Startup Circuit; Precision Fixed Operating Frequency withFrequency Modulation for Attenuating EMI; Various Protections: Over-Voltage Protection(OVP), Overload Protection (OLP), Output-ShortProtection (OSP), Abnormal Over-CurrentProtection (AOCP), Internal Thermal ShutdownFunction with Hysteresis (TSD); Internal Avalanche-Rugged SenseFET (650V); Pulse-by-Pulse Current Limiting; Built-in Soft-Start: 15ms; Under

Download FSL126MR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

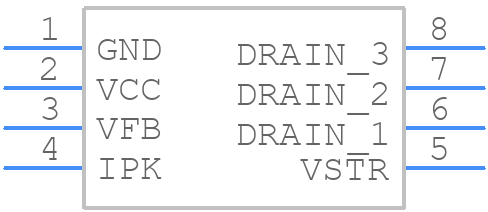

Symbol
FSL126MR - onsemi - PCB symbol
click to zoom
PCB Footprints
FSL126MR - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP8 9.42x6.38, 2.54P
click to zoom
3D Models
FSL126MR - onsemi - 3D model - Dual-In-Line Packages - PDIP8 9.42x6.38, 2.54P
click to zoom

FSL126MR Details

  • Manufacturer Part Number:

    FSL126MR

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP-8

  • Manufacturer Package Code:

    646CM

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-609 Code:

    e3

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FSL126MR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The FSL126MR should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended PCB layout guidelines. Also, consider derating the device's current rating at high temperatures.
  • The maximum allowed voltage on the VIN pin is 28V, but it's recommended to keep it below 24V for reliable operation and to prevent damage to the internal voltage regulator.
  • Yes, but be aware that the device's switching frequency is limited to 500 kHz. Exceeding this frequency may lead to reduced efficiency, increased heat generation, and potential device damage.
  • Use external overcurrent protection (OCP) and overvoltage protection (OVP) circuits, such as fuses or PTC thermistors, to prevent damage to the device. Also, consider using a voltage supervisor or reset IC to monitor the input voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FSL126MR Overview

Use the download button to access the FSL126MR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSL12, or try a keyword search, such as Power Management Circuits
