FSL336LRLX - onsemi

Description: Built-in Soft-Start and Startup Circuit; Pulse-by-Pulse Current Limiting; <120 mW at 230 VAC without External Bias; Adjustable Peak Current Limit; Fixed Operating Frequency: 50 kHz ; No Need for Auxiliary Bias Winding; Various Protections: Overload Protection (OLP), Over-Voltage Protection (OVP), Feedback Open-Loop Protection (FB_OLP), Thermal Shutdown (TSD); Built-in Avalanche-Rugged SenseFET: 650 V; No-Load Power Consumption: ; <25 mW at 230 VAC with External Bias; ; Frequency Modulation for Attenuating E

Download FSL336LRLX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

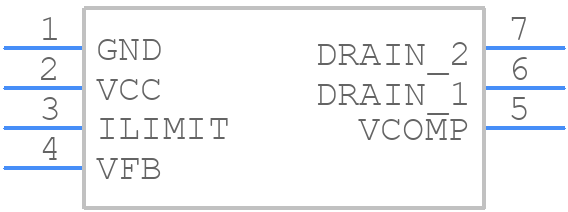

Symbol
FSL336LRLX - onsemi - PCB symbol
click to zoom
PCB Footprints
FSL336LRLX - onsemi PCB footprint - Other - Other - FSL336LRLX-3
click to zoom
3D Models
FSL336LRLX - onsemi - 3D model - Other - FSL336LRLX-3
click to zoom

FSL336LRLX Details

  • Manufacturer Part Number:

    FSL336LRLX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP7 MINUS PIN 6 GW

  • Package Description:

    LSOP-7

  • Manufacturer Package Code:

    707AA

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    R-PDSO-G7

  • JESD-609 Code:

    e3

  • Length:

    9.55 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    SOP7/8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    3.7 mm

  • Supply Current-Max (Isup):

    1.3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    55 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.4 mm

FSL336LRLX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FSL336LRLX involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the EN pin to a voltage source between 2.5V and 5.5V, and the VCC pin to a voltage source between 2.5V and 5.5V. Also, ensure that the input voltage is within the recommended range of 2.5V to 5.5V.
  • The FSL336LRLX can handle a maximum current of 3.6A. However, it's recommended to keep the current below 3A to ensure reliable operation and to prevent overheating.
  • To protect the FSL336LRLX from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to regulate the input voltage. You can also add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
  • The thermal resistance of the FSL336LRLX package is typically around 25°C/W. However, this value can vary depending on the specific application and PCB design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FSL336LRLX Overview

Use the download button to access the FSL336LRLX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FSL33, or try a keyword search, such as Switching Regulator or Controllers
