FSL518APG - onsemi

Description: Fine-tunable Skip Mode Operation; Peak Current: FSL518A = 610mA and FSL518H = 460 mA; Line Brown-in, Brown-out Function; Line Over-voltage Protection (LOVP); Fsw options: 100 & 130 kHz; Seamless implementation of isolated and non-isolated topologies; Integrated Line Compensation; Rugged 800V FET with 6.3Ω Typ. RDS(on) with Built-in HV current source for start up

Download FSL518APG Model

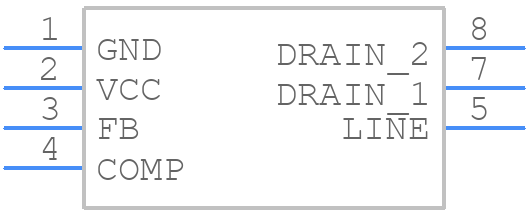

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FSL518APG - onsemi PCB footprint - Other - Other - FSL518APG-6
click to zoom
3D Models
FSL518APG - onsemi  - 3D model - Other - FSL518APG-6
click to zoom

FSL518APG Details

  • Manufacturer Part Number:

    FSL518APG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP-7

  • Package Description:

    DIP-8/7

  • Manufacturer Package Code:

    626A-01

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    44 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDIP-T7

  • JESD-609 Code:

    e3

  • Length:

    9.59 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.66 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    106 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

FSL518APG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Monitor the device's junction temperature (TJ) and adjust the operating conditions accordingly.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. Operating the device above this voltage may cause permanent damage.
  • Yes, the FSL518APG is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards.
  • Check the input voltage, output load, and PCB layout. Verify that the device is properly configured and that the output capacitor is within the recommended specifications.
