Part Image

FT201XQ-T - FTDI Chip

Description: FTDI - FT201XQ-T - IC, I/F, USB2.0 FS TO I2C, 16QFN

Download FT201XQ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

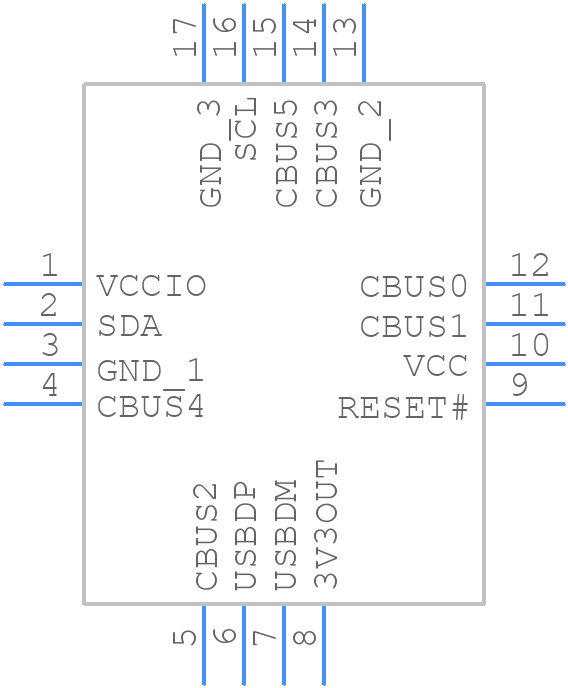

FT201XQ-T - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT201XQ-T - FTDI Chip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - FT201XQ-T-1
click to zoom
3D Models
FT201XQ-T - FTDI Chip - 3D model - Quad Flat No-Lead - FT201XQ-T-1
click to zoom

FT201XQ-T Details

  • Manufacturer Part Number:

    FT201XQ-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    7.65

  • Bus Compatibility:

    I2C; UART; USB

  • Clock Frequency-Max:

    12.02 MHz

  • Data Transfer Rate-Max:

    0.425 MBps

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    4 mm

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    8.65 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT201XQ-T Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the FT201XQ-T is 3 meters (10 feet) for full-speed devices and 1 meter (3.3 feet) for low-speed devices, assuming a good quality cable with proper shielding and termination.
  • Yes, the FT201XQ-T can operate with a 5V power supply, but it's recommended to use a 3.3V power supply to ensure compatibility with most USB devices and to reduce power consumption.
  • To configure the FT201XQ-T for UART mode, you need to set the EEPROM configuration to UART mode using the FTDI FT_Prog tool or by using the MPSSE commands. You also need to connect the RX and TX pins to the corresponding UART signals.
  • The maximum baud rate supported by the FT201XQ-T is 12 Mbps, but it's recommended to use a baud rate of 921.6 kbps or lower for reliable communication.
  • Yes, the FT201XQ-T can be used with a microcontroller that doesn't have a USB interface by using the FT201XQ-T as a USB-to-UART bridge. The microcontroller can communicate with the FT201XQ-T using a UART interface.
