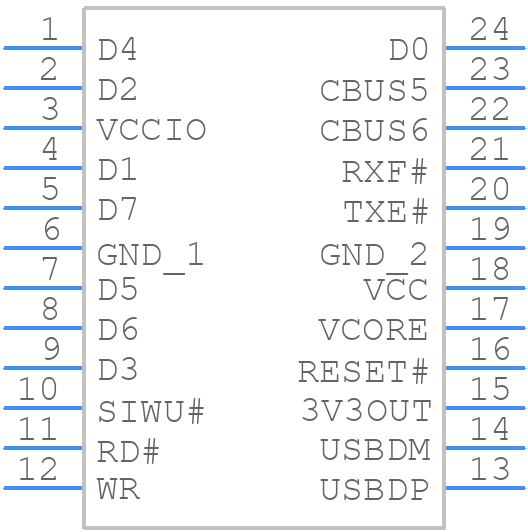

FT240XS-R - FTDI Chip

FT240XS-R Details

• Manufacturer Part Number:

  FT240XS-R

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Pin Count:

  24

• Country Of Origin:

  Mainland China

• HTS Code:

  8542.31.00.30

• Manufacturer:

  FTDI Chip

• YTEOL:

  7.65

• Bus Compatibility:

  USB

• Clock Frequency-Max:

  12.02 MHz

• Data Transfer Rate-Max:

  1 MBps

• External Data Bus Width:

  8

• JESD-30 Code:

  R-PDSO-G24

• Length:

  8.6614 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP24,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.7526 mm

• Supply Current-Max:

  8.4 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  3.9116 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, UNIVERSAL SERIAL BUS
