FTM-109-02-L-DV-P footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

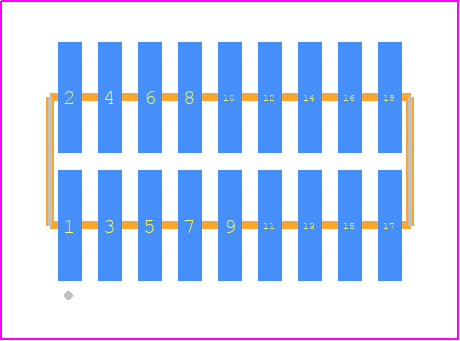

PCB Footprints

FTM-109-02-L-DV-P - SAMTEC PCB footprint - Other - Other - FTM-109-XX-Y-DV-P

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FTM-109-02-L-DV-P
Part Number FTM-109-02-L-DV-P
Manufacturer SAMTEC
Pin Count 18
Part Category Connector
Package Category Other
Footprint Name Other - FTM-109-XX-Y-DV-P
Released Date Jun 26, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FTM-109-02-L-DV-P Details

Manufacturer Part Number:
FTM-109-02-L-DV-P
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
10
Additional Feature:
PICK & PLACE PAD
Body Breadth:
0.125 inch
Body Depth:
0.05 inch
Body Length:
0.354 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Contact Pitch:
0.039 inch
Mating Contact Row Spacing:
0.039 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.2258 mm
Rated Current (Signal):
2.8 A
Reference Standard:
UL
Terminal Pitch:
0.9906 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
18

FTM-109-02-L-DV-P Frequently Asked Questions (FAQs)

The recommended mating sequence for FTM-109-02-L-DV-P is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the FTM-109-02-L-DV-P is designed for high-speed applications up to 10 Gbps. However, it's essential to follow proper PCB design and layout guidelines to ensure signal integrity.
The FTM-109-02-L-DV-P has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of industrial and commercial applications.
Yes, the FTM-109-02-L-DV-P is designed for automated assembly processes, including pick-and-place and reflow soldering. However, it's essential to follow Samtec's recommended assembly guidelines.
The typical lead time for FTM-109-02-L-DV-P can vary depending on the quantity and availability. However, Samtec typically offers a lead time of 2-4 weeks for standard orders.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FTM-109-02-L-DV-P Overview

Use the download button to access the FTM-109-02-L-DV-P schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FTM-1, or try a keyword search, such as Headers and Edge Type Connectors
