FTM-115-03-L-DV-P - SAMTEC

Description: 30 Position, 1.00 mm Surface Mount Micro Low Profile Terminal Strip, Vertical Mount

Download FTM-115-03-L-DV-P Model

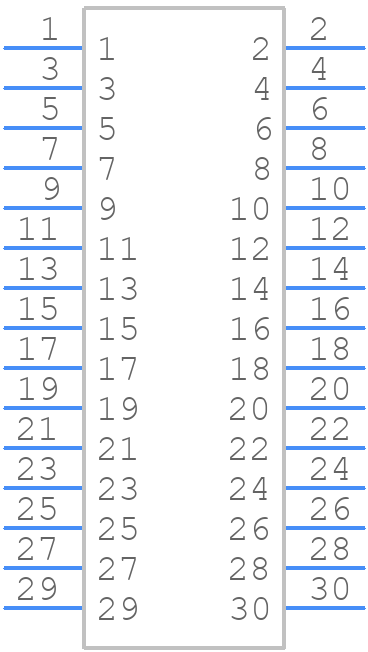

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FTM-115-03-L-DV-P - SAMTEC PCB footprint - Other - Other - FTM-115-XX-Y-DV-P
click to zoom

FTM-115-03-L-DV-P Details

  • Manufacturer Part Number:

    FTM-115-03-L-DV-P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.125 inch

  • Body Depth:

    0.05 inch

  • Body Length:

    0.591 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.039 inch

  • Mating Contact Row Spacing:

    0.039 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    3.175 mm

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.9906 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

FTM-115-03-L-DV-P Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the FTM-115-03-L-DV-P connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the FTM-115-03-L-DV-P connector is designed for high-speed applications and can support data rates up to 10 Gbps. However, it's essential to follow proper PCB design and layout guidelines to ensure signal integrity.
  • The FTM-115-03-L-DV-P connector has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the FTM-115-03-L-DV-P connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The typical insertion force for the FTM-115-03-L-DV-P connector is around 1.5 N (0.34 lbf) per contact, making it easy to mate and unmate the connector.
