FTMH-111-03-H-DV footprint, schematic symbol and 3D model by SAMTEC

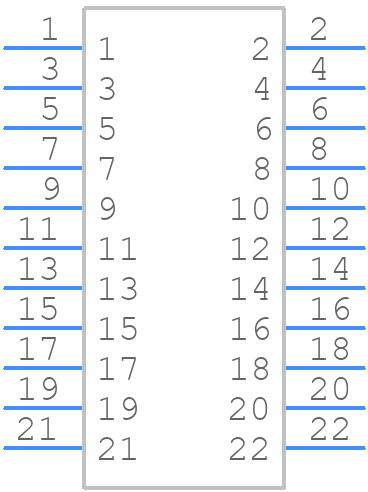

Symbol

click to zoom

PCB Footprints

FTMH-111-03-H-DV - SAMTEC PCB footprint - Other - Other - FTMH-111-YY-XX-DV

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FTMH-111-03-H-DV
Part Number FTMH-111-03-H-DV
Manufacturer SAMTEC
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - FTMH-111-YY-XX-DV
Released Date Jun 11, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FTMH-111-03-H-DV Details

Manufacturer Part Number:
FTMH-111-03-H-DV
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
France, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks
Manufacturer:
Samtec Inc
YTEOL:
9
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30)
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
1 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
22

FTMH-111-03-H-DV Frequently Asked Questions (FAQs)

The recommended mating sequence for FTMH-111-03-H-DV is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the FTMH-111-03-H-DV is designed for high-speed applications up to 10 Gbps. However, it's essential to follow proper PCB design and layout guidelines to ensure signal integrity.
The FTMH-111-03-H-DV has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of industrial and commercial applications.
Yes, the FTMH-111-03-H-DV is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly processes.
The typical lead time for FTMH-111-03-H-DV can vary depending on the quantity and availability. However, Samtec Inc typically offers a lead time of 2-4 weeks for standard orders.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FTMH-111-03-H-DV Overview

Use the download button to access the FTMH-111-03-H-DV schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FTMH-, or try a keyword search, such as Headers and Edge Type Connectors
