FTS-103-02-L-DV footprint, schematic symbol and 3D model by SAMTEC

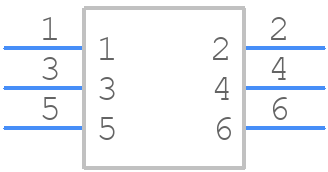

Symbol

click to zoom

PCB Footprints

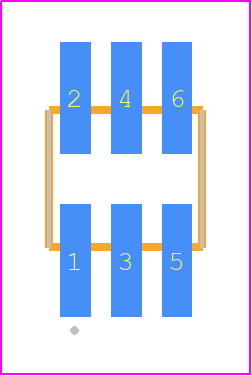

FTS-103-02-L-DV - SAMTEC PCB footprint - Other - Other - FTS-103-XX-YY-DV

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FTS-103-02-L-DV
Part Number FTS-103-02-L-DV
Manufacturer SAMTEC
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - FTS-103-XX-YY-DV
Released Date Jun 19, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FTS-103-02-L-DV Details

Manufacturer Part Number:
FTS-103-02-L-DV
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
0
Additional Feature:
LOW PROFILE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Rated Current (Signal):
4.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
6

FTS-103-02-L-DV Frequently Asked Questions (FAQs)

The recommended mating cycle for FTS-103-02-L-DV connector is 500 cycles.
Yes, the FTS-103-02-L-DV connector is designed to withstand high-vibration applications, making it suitable for use in harsh environments.
The operating temperature range for the FTS-103-02-L-DV connector is -40°C to 105°C.
Yes, the FTS-103-02-L-DV connector is RoHS compliant, meeting the requirements of the European Union's Restriction of Hazardous Substances directive.
The typical lead time for the FTS-103-02-L-DV connector is 4-6 weeks, depending on the quantity and availability.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FTS-103-02-L-DV Overview

Use the download button to access the FTS-103-02-L-DV schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FTS-1, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to FTS-103-02-L-DV

Showing 0 results

Image	Part Number	Model
	FTS-103-02-L-DV-TR Samtec Inc Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
	FTS-103-02-S-DV-TR Samtec Inc Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
For a full list of alternate parts for FTS-103-02-L-DV, check out Findchips.com
