FTS-106-01-L-SV footprint, schematic symbol and 3D model by SAMTEC

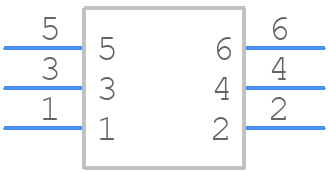

Symbol

click to zoom

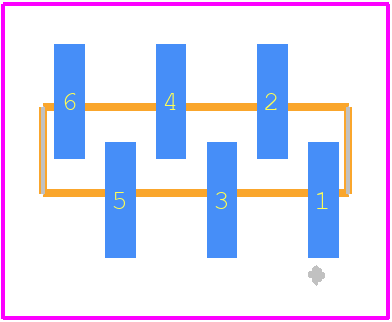

PCB Footprints

FTS-106-01-L-SV - SAMTEC PCB footprint - Other - Other - FTS-106-01-L-SV-2

click to zoom

3D Models

FTS-106-01-L-SV - SAMTEC - 3D model - Other - FTS-106-01-L-SV-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FTS-106-01-L-SV
Part Number FTS-106-01-L-SV
Manufacturer SAMTEC
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - FTS-106-01-L-SV-2
Released Date Nov 18, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FTS-106-01-L-SV Details

Manufacturer Part Number:
FTS-106-01-L-SV
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks
Manufacturer:
Samtec Inc
YTEOL:
12
Additional Feature:
LOW PROFILE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Rated Current (Signal):
4.2 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
6
UL Flammability Code:
94V-0

FTS-106-01-L-SV Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the FTS-106-01-L-SV is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the FTS-106-01-L-SV is 125°C (257°F) according to the datasheet. However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
Yes, the FTS-106-01-L-SV can accommodate PCB thicknesses up to 2.36 mm (0.093 in). However, Samtec recommends consulting their application notes for specific guidance on PCB thickness and mating considerations.
The FTS-106-01-L-SV has a mating cycle life of 500 cycles minimum according to Samtec's testing and validation procedures.
