The recommended mating sequence for FTS-140-01-L-D is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the FTS-140-01-L-D is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
The maximum operating temperature for FTS-140-01-L-D is 125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
The FTS-140-01-L-D is designed for use with 1.57mm thick PCBs. However, Samtec offers variations of this connector that can accommodate different PCB thicknesses. Consult with a Samtec representative to determine the best option for your specific application.
The recommended torque for the screw locks on FTS-140-01-L-D is 0.5-1.5 N·m (4-12 in·lb). Over-torquing can damage the connector, so it's essential to follow the recommended torque specification.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
FTS-140-01-L-D Overview

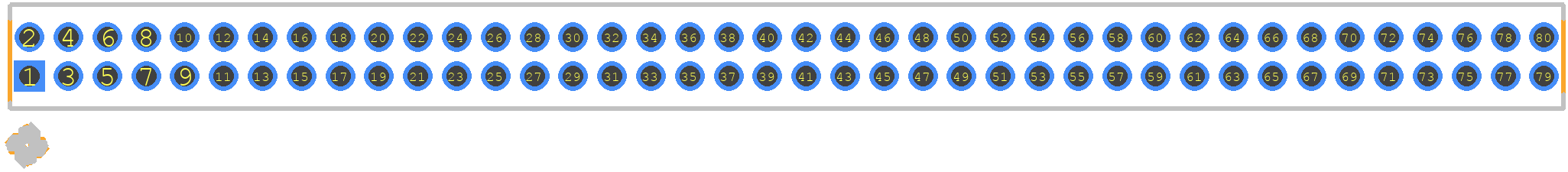

Use the download button to access the FTS-140-01-L-D schematic symbol and PCB footprint.
