FTS-150-01-L-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

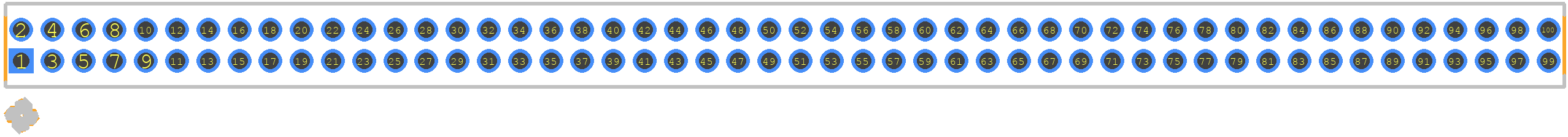

FTS-150-01-L-D - SAMTEC PCB footprint - Other - Other - SAMTEC_FTS-150-01-L-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FTS-150-01-L-D
Part Number FTS-150-01-L-D
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - SAMTEC_FTS-150-01-L-D
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

FTS-150-01-L-D Details

Manufacturer Part Number:
FTS-150-01-L-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9.15
Additional Feature:
LOW PROFILE
Body Breadth:
0.135 inch
Body Depth:
0.034 inch
Body Length:
2.5 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
1.27 mm
Plating Thickness:
10u inch
Rated Current (Signal):
1.75 A
Reference Standard:
UL
Terminal Length:
0.09 inch
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
100

FTS-150-01-L-D Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the connectors in a perpendicular orientation, ensuring the guide pins are aligned, and then rotate the connectors into their final mated position.
Proper polarization is ensured by the keying feature on the connector. The keying feature is designed to prevent mis-mating and ensure that the connectors are mated correctly.
The maximum operating temperature range for the FTS-150-01-L-D connector is -55°C to +125°C.
Yes, the FTS-150-01-L-D connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
The recommended torque value for the FTS-150-01-L-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm).

Trust Checks

System Verified

FTS-150-01-L-D Overview

Use the download button to access the FTS-150-01-L-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FTS-1, or try a keyword search, such as Headers and Edge Type Connectors
