Part Image

FUSB15201DVMNWTWG - onsemi

Description: Advanced power sharing algorithms; Fully Programmable and Upgradable Open−source Firmware providing API for Customer Specific Device Policy Manager Development; Small Footprint Dual−port USB PD Controller Supporting the most Popular Peripherals; High Voltage Protection on CC and D+/− Pins; USB PD 3.0 & USB Type−C 2.0 Compliant; 10−bit ADC for accurate monitoring of VBUS, external temperature and voltages; External Temperature Monitoring via NTC Resistors; Grade 2 AEC−Q100 Qualified; I2C Master/Slave Periphe

Download FUSB15201DVMNWTWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

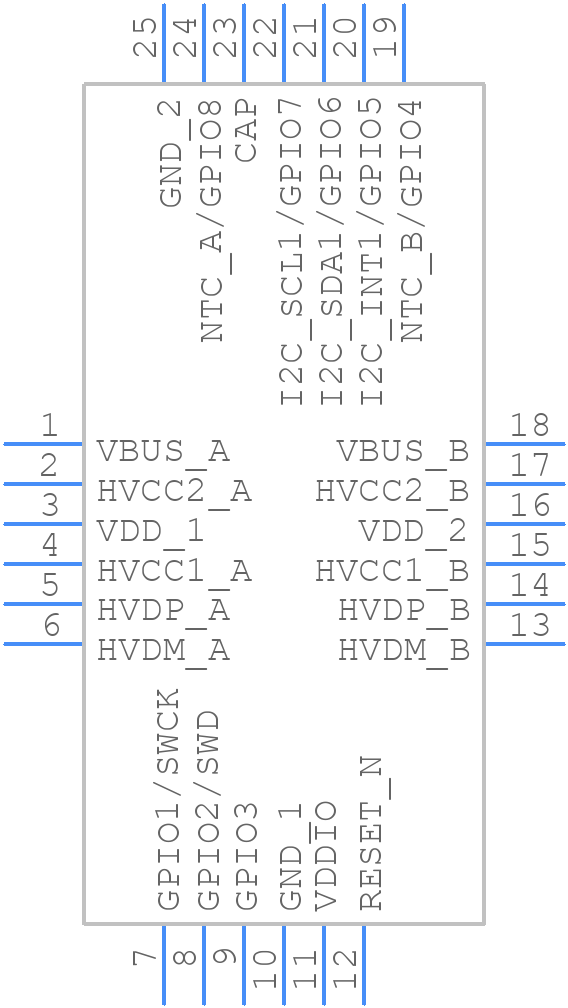

FUSB15201DVMNWTWG - onsemi - PCB symbol
click to zoom
PCB Footprints
FUSB15201DVMNWTWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFNW24 4x4, 0.5P
click to zoom
3D Models
FUSB15201DVMNWTWG - onsemi - 3D model - Quad Flat No-Lead - QFNW24 4x4, 0.5P
click to zoom

FUSB15201DVMNWTWG Details

  • Manufacturer Part Number:

    FUSB15201DVMNWTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFNW24 4x4, 0.5P

  • Manufacturer Package Code:

    484AU

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Matte Tin (Sn) - annealed

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FUSB15201DVMNWTWG Overview

Use the download button to access the FUSB15201DVMNWTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FUSB1, or try a keyword search, such as Power Management Circuits
