FUSB15201VMNWTWG - onsemi

Description: Advanced power sharing algorithms; Fully Programmable and Upgradable Open−source Firmware providing API for Customer Specific Device Policy Manager Development; Small Footprint Dual−port USB PD Controller Supporting the most Popular Peripherals; High Voltage Protection on CC and D+/− Pins; USB PD 3.0 & USB Type−C 2.0 Compliant; 10−bit ADC for accurate monitoring of VBUS, external temperature and voltages; External Temperature Monitoring via NTC Resistors; Grade 2 AEC−Q100 Qualified; I2C Master/Slave Periphe

Download FUSB15201VMNWTWG Model

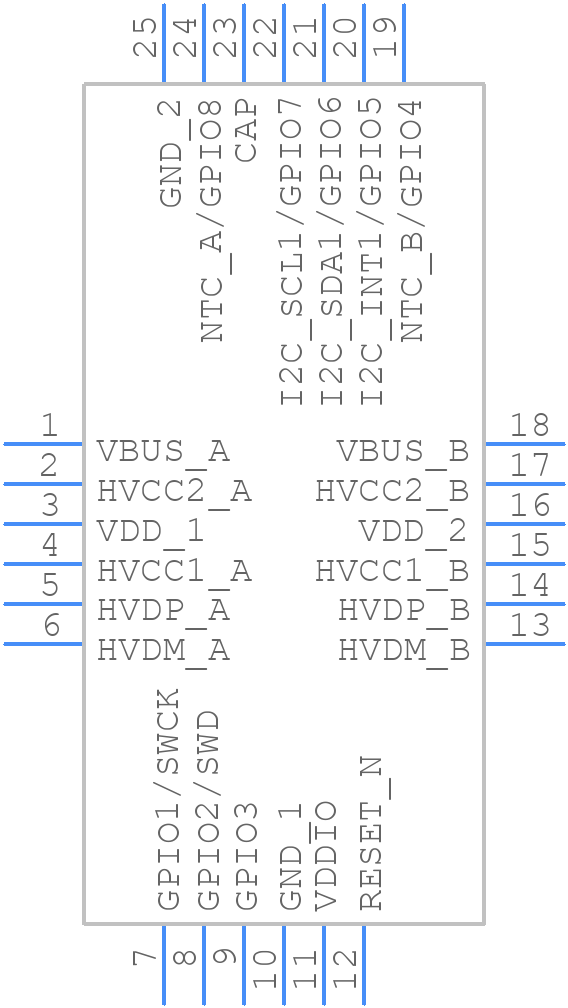

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FUSB15201VMNWTWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFNW24 4x4, 0.5P CASE 484AU ISSUE O
click to zoom
3D Models
FUSB15201VMNWTWG - onsemi  - 3D model - Quad Flat No-Lead - QFNW24 4x4, 0.5P CASE 484AU ISSUE O
click to zoom

FUSB15201VMNWTWG Details

  • Manufacturer Part Number:

    FUSB15201VMNWTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFNW24 4x4, 0.5P

  • Manufacturer Package Code:

    484AU

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

FUSB15201VMNWTWG Frequently Asked Questions (FAQs)

  • A good PCB layout for the FUSB15201VMNWTWG should follow the guidelines for high-speed USB signals, including minimizing trace lengths, using 50-ohm impedance-controlled traces, and placing the device close to the USB connector. A 4-layer PCB with a solid ground plane is recommended.
  • To ensure EMI compliance, use a shielded USB connector, and consider adding EMI filters or ferrite beads on the USB lines. Additionally, follow proper PCB layout and grounding techniques, and use a metal casing or shielding for the device.
  • The FUSB15201VMNWTWG supports USB 2.0 high-speed signals, which have a maximum cable length of 3 meters (10 feet). However, the actual cable length may vary depending on the specific application, cable quality, and signal integrity.
  • The FUSB15201VMNWTWG is designed for USB 2.0 high-speed applications. While it may work in some USB 3.0 or USB 3.2 applications, it is not recommended as it may not meet the higher speed and signal integrity requirements of these standards.
  • The FUSB15201VMNWTWG has a maximum junction temperature of 150°C. To ensure reliable operation, use a heat sink or thermal pad on the exposed pad, and follow proper PCB thermal design guidelines. Keep the device away from heat sources and ensure good airflow in the system.
