Description:Ability to connect as either a host or a device based on what has been attached. ; Automatic Hard Reset Ordered Set Sent ; Dual-Role Functionality with Autonomous DRP Toggle ; Dead Battery Support (SNK Mode Support when No Power Applied); Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel.; Automatic soft reset packet sent with retries if needed ; USB Power Delivery (PD) 2.0, Version 1.1 Support ; Low Power Operation: ICC = 25 µA (Typical); Automatic
A good PCB layout for the FUSB302BVMPX involves keeping the high-speed USB traces short and away from noise sources, using a solid ground plane, and minimizing vias and layer changes. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation of the FUSB302BVMPX in high-temperature environments, it is essential to provide adequate heat sinking, ensure good airflow, and follow proper thermal design guidelines. The device can operate up to 105°C, but thermal derating may be necessary above 85°C.
The FUSB302BVMPX has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during manufacturing and assembly. The device can withstand up to ±8 kV of ESD according to the IEC 61000-4-2 standard.
To troubleshoot issues with the FUSB302BVMPX, start by verifying the power supply and clock signals, then check the USB signal integrity using an oscilloscope or protocol analyzer. Ensure that the device is properly configured and that the firmware is up-to-date.
Yes, the FUSB302BVMPX can be used in a USB-C application. To do so, you will need to use an external USB-C controller and ensure that the device is configured to support USB-C Alternate Modes (Alt Modes) and Power Delivery (PD).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FUSB302BVMPX Overview

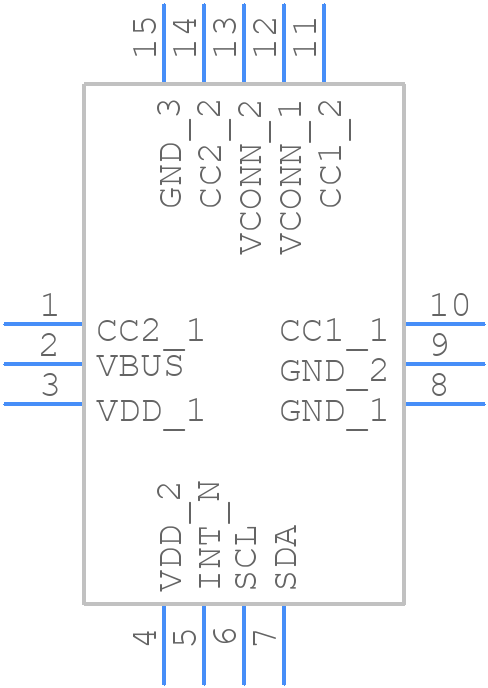

Use the download button to access the FUSB302BVMPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FUSB3,
or try a keyword search, such as Power Management Circuits
