Part Image

FUSB302TV10MPX - onsemi

Description: Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel.; Current Capability Detection as Device; USB Power Delivery (PD) 2.0, Version 1.1 Support ; Current Capability Indication as Host; Low Power Operation: ICC = 25 µA (Typical); Automatic Hard Reset Ordered Set Sent ; Dual-Role Functionality with Autonomous DRP Toggle ; Audio Adapter Accessory Mode; Default CC open for SRC application.; Automatic retries of sending a packet if a GoodCRC is not received

Download FUSB302TV10MPX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

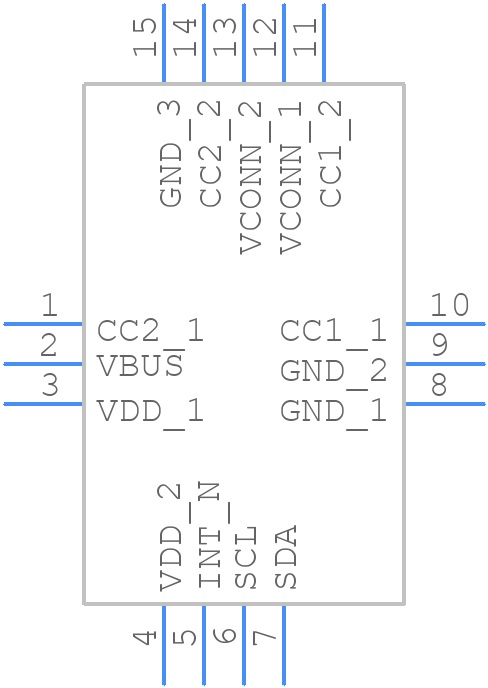

FUSB302TV10MPX - onsemi - PCB symbol
click to zoom
PCB Footprints
FUSB302TV10MPX - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - WQFN14 2.5x2.5, 0.5P CASE 510BR ISSUE O
click to zoom
3D Models
FUSB302TV10MPX - onsemi - 3D model - Quad Flat No-Lead - WQFN14 2.5x2.5, 0.5P CASE 510BR ISSUE O
click to zoom

FUSB302TV10MPX Details

  • Manufacturer Part Number:

    FUSB302TV10MPX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    WQFN-14

  • Manufacturer Package Code:

    510BR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2018-12-10

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    SEATED HT-CALCULATED

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC14,.1SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

FUSB302TV10MPX Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the FUSB302TV10MPX can be found in the Onsemi application note AND9093/D, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The FUSB302TV10MPX is a USB-C PD controller that requires configuration through an I2C interface. The configuration process involves setting the device's registers to enable PD functionality, set power profiles, and configure the USB-C port. Onsemi provides a detailed configuration guide in the FUSB302TV10MPX datasheet and application notes.
  • The FUSB302TV10MPX supports cable lengths up to 2 meters for USB 2.0 and 1 meter for USB 3.2 Gen 2, as specified in the USB specification. However, the actual cable length supported may vary depending on the specific application, cable quality, and system design.
  • While the FUSB302TV10MPX is designed for USB-C applications, it can be used in non-USB-C applications that require a USB PD controller. However, the device's USB-C specific features, such as Alternate Mode (Alt Mode) and Power Delivery (PD), may not be utilized in non-USB-C applications.
  • The FUSB302TV10MPX has built-in fault detection and protection mechanisms, including overvoltage protection, undervoltage protection, and overcurrent protection. The device also supports fault reporting through its I2C interface, allowing the system to take corrective action in case of a fault.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FUSB302TV10MPX Overview

Use the download button to access the FUSB302TV10MPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FUSB3, or try a keyword search, such as Power Management Circuits
