FUSB302TVMPX - onsemi

Description: Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel.; Current Capability Detection as Device; USB Power Delivery (PD) 2.0, Version 1.1 Support ; Current Capability Indication as Host; Low Power Operation: ICC = 25 µA (Typical); Automatic Hard Reset Ordered Set Sent ; Dual-Role Functionality with Autonomous DRP Toggle ; Audio Adapter Accessory Mode; Default CC open for SRC application.; Automatic retries of sending a packet if a GoodCRC is not received

Download FUSB302TVMPX Model

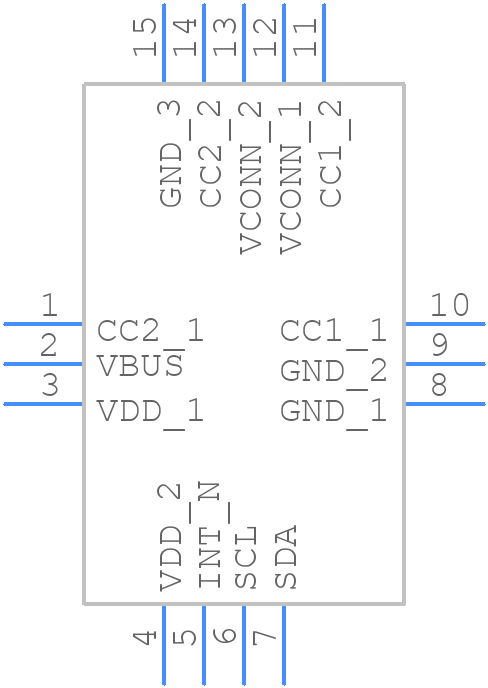

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FUSB302TVMPX - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - WQFN14 2.5x2.5, 0.5P CASE 510BR ISSUE O
click to zoom
3D Models
FUSB302TVMPX - onsemi  - 3D model - Quad Flat No-Lead - WQFN14 2.5x2.5, 0.5P CASE 510BR ISSUE O
click to zoom

FUSB302TVMPX Details

  • Manufacturer Part Number:

    FUSB302TVMPX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WQFN-14

  • Manufacturer Package Code:

    510BR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-10

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    SEATED HT-CALCULATED

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC14,.1SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

FUSB302TVMPX Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the FUSB302TVMPX can be found in the Onsemi application note AND9173/D, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The FUSB302TVMPX can be configured for different USB speeds using the MODE pin. For example, tying the MODE pin to VBUS enables USB 2.0 high-speed mode, while tying it to GND enables USB 2.0 full-speed mode. The datasheet provides more information on the different configuration options.
  • The FUSB302TVMPX supports cable lengths up to 3 meters for USB 2.0 high-speed mode and up to 5 meters for USB 2.0 full-speed mode, assuming a good quality cable with minimal signal attenuation.
  • The FUSB302TVMPX has built-in overvoltage protection (OVP) that detects and responds to voltage levels above 6.5V on the VBUS pin. When an overvoltage condition is detected, the device disconnects the upstream port and enters a high-impedance state to protect the downstream device.
  • Yes, the FUSB302TVMPX can be used in a USB-C application, but it requires additional circuitry to handle the USB-C specific requirements, such as CC pin detection and configuration channel (CC) logic. Onsemi provides a reference design and application note to help with the implementation.
