FUSB303BTMX - onsemi

Description: Fully Autonomous USB−C™ Port Controller; Supports Latest Type−C™ Specification Release 1.3; Source, Sink, and DRP Port role Configuration with Optional Accessory Support; GPIO and I2C Configuration; Max 28 V DC Tolerance on ID, VBUS_DET, CC1 and CC2; Dead Battery Support (Sink Port role when No Power Applied); 4 kV HBM ESD Protection for Connector Pins; Try.SRC and Try.SNK modes for Preferring Source Role or Sink Role Respectively; Typical Low Power Operation: ICC < 10µA

Download FUSB303BTMX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

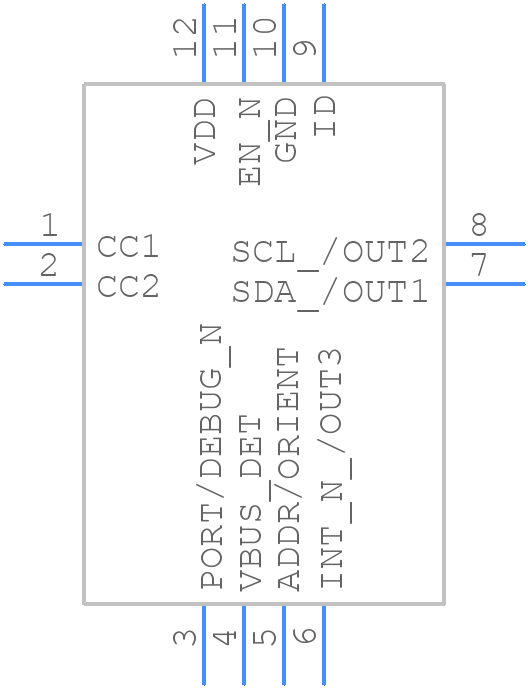

FUSB303BTMX - onsemi - PCB symbol
click to zoom
PCB Footprints
FUSB303BTMX - onsemi PCB footprint - Other - Other - FUSB303BTMX-1
click to zoom
3D Models
FUSB303BTMX - onsemi - 3D model - Other - FUSB303BTMX-1
click to zoom

FUSB303BTMX Details

  • Manufacturer Part Number:

    FUSB303BTMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    X2QFN-12

  • Package Description:

    QFN-12

  • Manufacturer Package Code:

    722AG

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-01-31

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N12

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.06SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.85 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Silver/Gold (Ni/Pd/Ag/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

FUSB303BTMX Frequently Asked Questions (FAQs)

  • A good PCB layout for FUSB303BTMX involves keeping the high-speed USB traces short and away from noise sources, using a solid ground plane, and minimizing vias and layer changes. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure EMC, use a metal shield around the FUSB303BTMX, keep the device away from noise sources, and use a common mode choke or ferrite bead on the USB lines. Also, follow the recommended PCB layout and use a shielded USB cable.
  • The maximum cable length supported by FUSB303BTMX is 3 meters, as per the USB 2.0 specification. However, the actual cable length may vary depending on the cable quality and the system's signal integrity.
  • The FUSB303BTMX has a built-in power management feature that allows it to enter a low-power state when not in use. The device can be powered down by asserting the EN pin low. Additionally, the device has a built-in voltage regulator that can be used to power external circuitry.
  • The FUSB303BTMX has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated at a temperature below 85°C. A thermal pad is available on the package to help dissipate heat.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FUSB303BTMX Overview

Use the download button to access the FUSB303BTMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FUSB3, or try a keyword search, such as Power Management Circuits
