A good PCB layout for FUSB3301MPX involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the USB traces. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure EMI compliance, use a shielded USB connector, keep the USB traces away from noise sources, and add EMI filters or ferrite beads to the USB lines. Also, ensure that the device is placed in a shielded enclosure.
The maximum cable length supported by FUSB3301MPX is 3 meters, as per the USB 2.0 specification. However, the actual cable length may vary depending on the cable quality and the system's signal integrity.
Yes, FUSB3301MPX is backward compatible with USB 3.0 and USB 3.2 systems. However, it will only operate at USB 2.0 speeds. If you need USB 3.0 or USB 3.2 speeds, consider using a different device.
FUSB3301MPX has built-in overcurrent protection. However, it's recommended to add external overcurrent protection, such as a polyfuse or a dedicated overcurrent protection IC, to ensure safe and reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FUSB3301MPX Overview

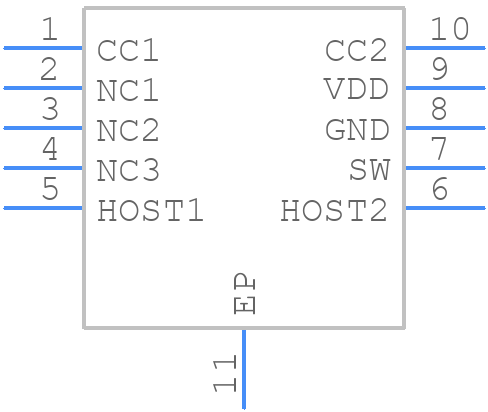

Use the download button to access the FUSB3301MPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FUSB3,
or try a keyword search, such as Power Management Circuits
