A good PCB layout for the FUSB3307D6MX involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane is recommended.
To ensure proper power-up and configuration, connect the EN pin to a high-level logic signal (e.g., VCC) and make sure the input voltage (VIN) is within the recommended range (3.5V to 5.5V). Also, ensure the device is properly bypassed with capacitors and that the output voltage (VOUT) is within the specified range.
The maximum current rating for the FUSB3307D6MX is 2.5A. To calculate the output current capability, consider the input voltage, output voltage, and efficiency of the device. A general rule of thumb is to derate the maximum current by 10-20% to account for thermal and other losses.
To manage thermal dissipation, ensure good airflow around the device, use a heat sink or thermal pad, and keep the device away from other heat sources. The FUSB3307D6MX has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. Monitor the device temperature and adjust the design accordingly.
The FUSB3307D6MX has a higher output current capability (2.5A vs. 1.5A) and a wider input voltage range (3.5V to 5.5V vs. 3.3V to 5.5V) compared to the FUSB301A. The FUSB3307D6MX also has improved efficiency and a smaller package size.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FUSB3307D6MX Overview

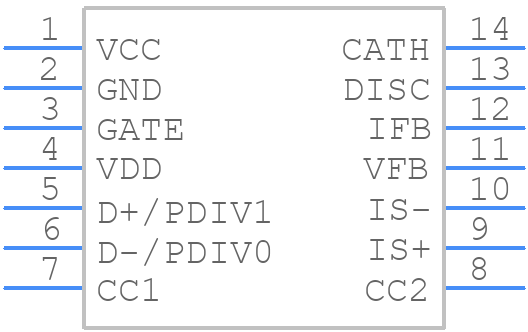

Use the download button to access the FUSB3307D6MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FUSB3,
or try a keyword search, such as Power Management Circuits
