FUSB3307D6VMNWTWG - onsemi

Description: PD 3.0 v1.2 and Type−C r1.4 Compliant; Small Current Sensing Resistor (5 m) for High Efficiency; Constant Voltage (CV) and Constant Current Limit (CL) Regulation; Gate Driver for N−Channel MOSFET as a Load Switch; CC1/CC2 Pin Protection up to 26 V; Built−in Cable−Drop Compensation; Selectable Resistor Divider or Battery Charging (BC1.2) Modes; Built−in Output Capacitor Bleeding Function for Fast Discharge; Adaptive UVP, Adaptive OVP, OTP and VBUS Fault Detection

Download FUSB3307D6VMNWTWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

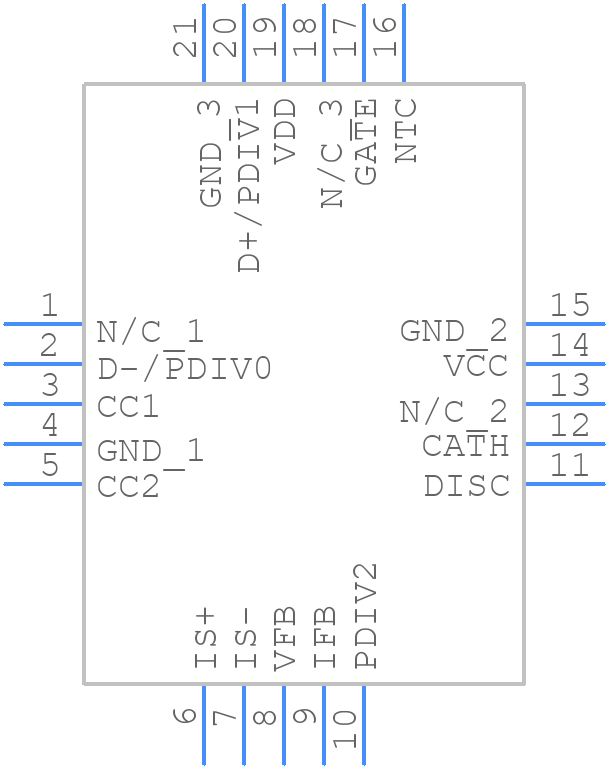

FUSB3307D6VMNWTWG - onsemi - PCB symbol
click to zoom
PCB Footprints
FUSB3307D6VMNWTWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - FUSB3307D-6VMNWTWG
click to zoom
3D Models
FUSB3307D6VMNWTWG - onsemi - 3D model - Quad Flat No-Lead - FUSB3307D-6VMNWTWG
click to zoom

FUSB3307D6VMNWTWG Details

  • Manufacturer Part Number:

    FUSB3307D6VMNWTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFNW20 4x4, 0.5P

  • Package Description:

    QFN-20

  • Manufacturer Package Code:

    484AT

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-04-17

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3.1 mA

  • Supply Voltage-Max (Vsup):

    22.05 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.87V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

FUSB3307D6VMNWTWG Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the FUSB3307D6VMNWTWG. Ensure that the device is placed close to the USB connector, and use a solid ground plane to reduce EMI. Keep the input and output traces short and separate to minimize noise coupling. Refer to the onsemi application note AND8393/D for a recommended PCB layout.
  • The FUSB3307D6VMNWTWG requires external components such as resistors, capacitors, and inductors. Choose components with low ESR and high-quality dielectrics to ensure optimal performance. Refer to the datasheet and application notes for recommended component values and types.
  • The FUSB3307D6VMNWTWG has an operating temperature range of -40°C to +85°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance.
  • To troubleshoot issues with the FUSB3307D6VMNWTWG, start by checking the power supply voltage, input/output voltage levels, and signal integrity. Use oscilloscopes and logic analyzers to debug the device's behavior. Refer to the datasheet and application notes for troubleshooting guidelines and common issues.
  • Yes, the FUSB3307D6VMNWTWG is compatible with both USB 3.0 and USB 2.0. The device supports data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 devices.
