Description:USB 3.1 SuperSpeed 5Gbps and10 Gbps Switch; 10 GHz Typical Bandwidth ; -1.0 dB Typical Insertion Loss at 2.5 GHz; Low Active Power of 12 μA Typical; Low Shutdown Power of < 1 μA Max.; 2 kV HBM ESD Protection; Small Packaging, 18 Lead TMLP; Wide VDD Operating Range, 1.5 V-5.0 V
A good PCB layout for FUSB340TMX involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the USB connector. Additionally, it's recommended to use a common mode filter or a ferrite bead to reduce EMI.
To ensure proper biasing, connect VCC to a 3.3V power supply, and connect VBUS to the USB bus voltage (5V for USB 2.0 and 5V or 9V for USB 3.0). Also, make sure to decouple VCC with a 10uF capacitor to ground.
The FUSB340TMX has a maximum current rating of 1.5A, making it suitable for high-current USB applications. However, it's essential to ensure proper thermal management to prevent overheating.
To troubleshoot issues, use a logic analyzer or oscilloscope to monitor the VBUS and VCC pins. Check for voltage levels, signal integrity, and timing. Also, verify that the device is properly biased and that the input and output capacitors are correctly sized.
Yes, the FUSB340TMX is compatible with USB-C and USB-PD applications. However, additional circuitry and components may be required to support the higher power delivery and alternate modes of USB-C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FUSB340TMX Overview

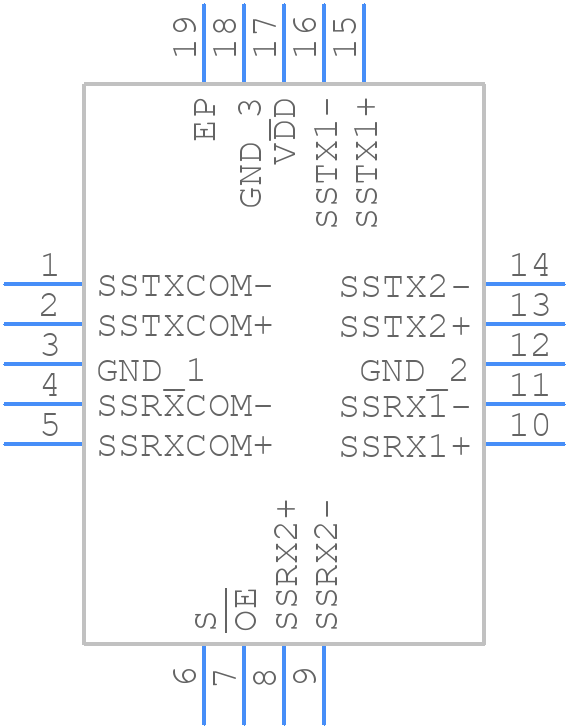

Use the download button to access the FUSB340TMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FUSB3,
or try a keyword search, such as Other Telecom ICs
