Description:Field Programmable for Different Cable Configurations; Integrated USB−PD 3.0 Protocol Layer and Device Policy Engines; USB PD 2.0 and 3.0 Support; 5x Programmable for Different Cable Configurations; SOP’ Signaling Support; 28 V Tolerant CC and VCONN; Integrated Isolation Between VCONN1 and VCONN2; 2.4V − 5.5V VCONN Operation; Small Footprint; Low Power; Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; Autonomous Ra Weakening to Reduce Power Consumption
A good PCB layout for the FUSB380CUCX should follow the guidelines provided in the onsemi application note AND9393/D, which includes recommendations for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The FUSB380CUCX has several configuration options that can be set through external resistors or firmware. Engineers should consult the onsemi application note AND9394/D, which provides detailed information on configuration options, such as USB speed, device address, and power management, to ensure the device is properly configured for their specific application.
The FUSB380CUCX has a maximum junction temperature of 150°C. To ensure reliable operation, engineers should implement proper thermal management techniques, such as heat sinking, thermal vias, and thermal pads, to keep the device temperature within the recommended operating range. The onsemi application note AND9393/D provides guidance on thermal management for the FUSB380CUCX.
To troubleshoot issues with the FUSB380CUCX, engineers can use tools such as USB protocol analyzers, logic analyzers, or oscilloscopes to capture and analyze the USB traffic. They should also consult the onsemi application notes and datasheet to ensure proper configuration, PCB layout, and signal integrity. Additionally, onsemi provides technical support and resources to help engineers troubleshoot and resolve issues with the FUSB380CUCX.
Yes, the FUSB380CUCX is a high-speed USB device that can be susceptible to electromagnetic interference (EMI). Engineers should follow proper EMI and EMC design practices, such as using shielding, filtering, and grounding, to minimize the risk of EMI and ensure compliance with relevant regulatory standards. The onsemi application note AND9393/D provides guidance on EMI and EMC considerations for the FUSB380CUCX.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FUSB380CUCX Overview

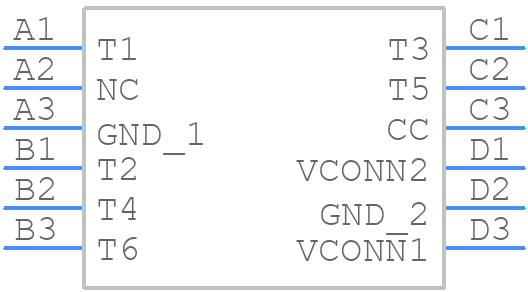

Use the download button to access the FUSB380CUCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FUSB3,
or try a keyword search, such as Power Management Circuits
