FW297-TL-2W - onsemi

Description: Low On-Resistance : 58mΩ (max) [ID=4.5A, VGS=10V]; 4.0 V Drive; ESD Diode - Protected Gate; RoHS Compliant

Download FW297-TL-2W Model

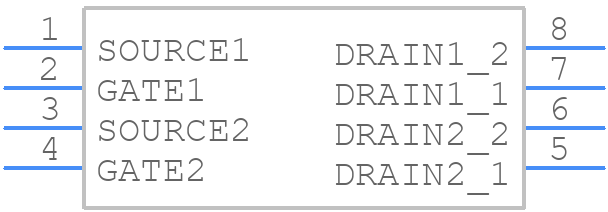

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FW297-TL-2W - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - FW297-TL-2W
click to zoom
3D Models
FW297-TL-2W - onsemi  - 3D model - Small Outline Packages - FW297-TL-2W
click to zoom

FW297-TL-2W Details

  • Manufacturer Part Number:

    FW297-TL-2W

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8

  • Package Description:

    SC-87, SOT-96, SOIC-8

  • Manufacturer Package Code:

    751CR

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ESD PROTECTED

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    4.5 A

  • Drain-source On Resistance-Max:

    0.058 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    2.2 W

  • Pulsed Drain Current-Max (IDM):

    18 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

FW297-TL-2W Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. Ensure a minimum of 10mm x 10mm copper area for heat dissipation.
  • Implement a thermal management system, such as a heat sink or fan, to maintain a junction temperature below 150°C. Ensure proper PCB design, component selection, and thermal interface material usage.
  • Handle the device with ESD-protective equipment and follow standard ESD precautions. The device has built-in ESD protection, but it's not a substitute for proper handling and storage procedures.
  • Yes, the FW297-TL-2W is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure compliance with specific industry standards and regulations.
  • Use a logic analyzer or oscilloscope to monitor signal integrity and voltage levels. Check for proper power supply decoupling, signal termination, and PCB layout. Consult the datasheet and application notes for specific guidance.
