FWJ-06-01-T-S footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

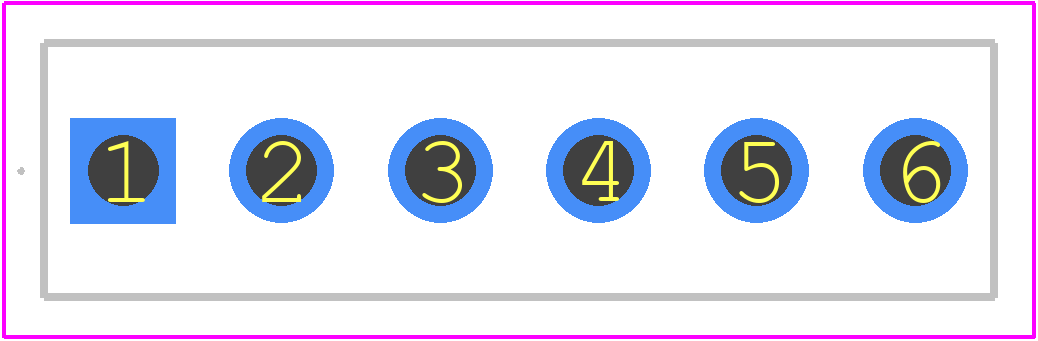

FWJ-06-01-T-S - SAMTEC PCB footprint - Other - Other - FWJ-06-01-T-S-4

click to zoom

3D Models

FWJ-06-01-T-S - SAMTEC - 3D model - Other - FWJ-06-01-T-S-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FWJ-06-01-T-S
Part Number FWJ-06-01-T-S
Manufacturer SAMTEC
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - FWJ-06-01-T-S-4
Released Date Aug 5, 2025
Last Modified Date Aug 9, 2025 8:43 AM UTC
Pinout / Pin List Click Here (Member Only)

FWJ-06-01-T-S Details

Manufacturer Part Number:
FWJ-06-01-T-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 1 Day
Manufacturer:
Samtec Inc
YTEOL:
8
Body Breadth:
0.25 inch
Body Depth:
0.125 inch
Body Length:
0.936 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
6.7 A
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
6
UL Flammability Code:
94V-0

FWJ-06-01-T-S Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the FWJ-06-01-T-S connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure reliable connections.
The FWJ-06-01-T-S connector is rated for operation in temperatures ranging from -40°C to +125°C. However, it's essential to consider the temperature rating of the specific application and ensure the connector is suitable for the operating conditions.
The FWJ-06-01-T-S connector is not sealed or waterproof. It's recommended to use a connector with a higher IP rating or apply additional sealing measures if the application requires operation in humid or wet environments.
The recommended torque value for the screws on the FWJ-06-01-T-S connector is 0.5-1.5 N·m (4-12 in·lb). It's essential to follow the recommended torque value to ensure reliable connections and prevent damage to the connector.

Trust Checks

Community Provided

System Verified

Community Approved

FWJ-06-01-T-S Overview

Use the download button to access the FWJ-06-01-T-S schematic symbol, PCB footprint, and 3D model.
