FWJ-07-01-T-S - SAMTEC

Description: Board to Board & Mezzanine Connectors .156" Power Terminal Strip

Download FWJ-07-01-T-S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FWJ-07-01-T-S - SAMTEC - PCB symbol
click to zoom
PCB Footprints

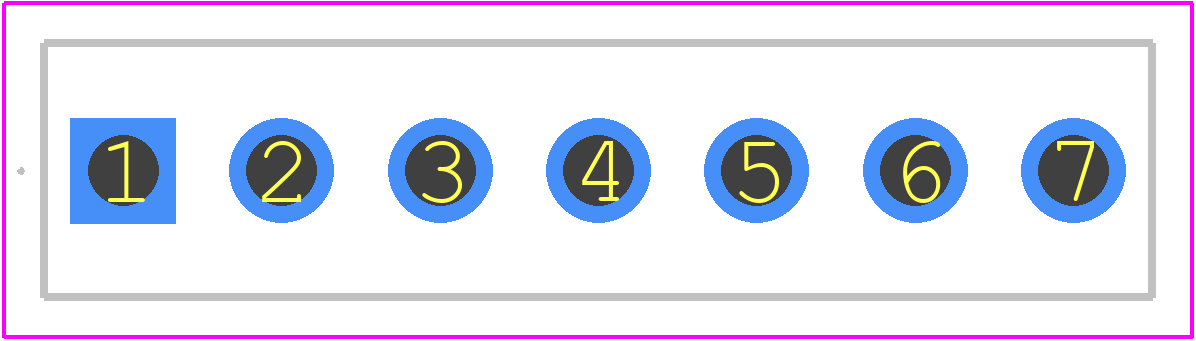

FWJ-07-01-T-S - SAMTEC PCB footprint - Other - Other - FWJ-07-01-T-S-3
click to zoom
3D Models
FWJ-07-01-T-S - SAMTEC - 3D model - Other - FWJ-07-01-T-S-3
click to zoom

FWJ-07-01-T-S Details

  • Manufacturer Part Number:

    FWJ-07-01-T-S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Body Breadth:

    0.25 inch

  • Body Depth:

    0.125 inch

  • Body Length:

    1.092 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    MATTE TIN OVER NICKEL (50)

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    6.7 A

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    7

  • UL Flammability Code:

    94V-0

FWJ-07-01-T-S Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the FWJ-07-01-T-S connector is 50 cycles, as per Samtec's general guidelines for similar connectors.
  • The operating temperature range for the FWJ-07-01-T-S connector is -40°C to 105°C, as per Samtec's specifications.
  • While the FWJ-07-01-T-S connector is designed to be rugged, it's not specifically designed for high-vibration applications. For such applications, Samtec recommends using connectors specifically designed for high-vibration environments, such as their Tiger Eye or Q2 connectors.
  • The FWJ-07-01-T-S connector is designed for general-purpose applications and can support speeds up to 3.0 Gbps. However, for high-speed signal transmission (e.g., 10 Gbps or higher), Samtec recommends using connectors specifically designed for high-speed applications, such as their ExaMAX or Edge Rate connectors.
  • Yes, the FWJ-07-01-T-S connector is RoHS and REACH compliant, as per Samtec's environmental compliance policies.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FWJ-07-01-T-S Overview

Use the download button to access the FWJ-07-01-T-S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FWJ-0, or try a keyword search, such as Power Connectors
