The recommended mating sequence is to mate the headers first, followed by the sockets. This ensures proper alignment and prevents damage to the connectors.
Yes, the FWJ-08-01-T-S connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and soldering techniques to ensure reliable connections.
The maximum operating temperature range for the FWJ-08-01-T-S connector is -40°C to +125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
Yes, the FWJ-08-01-T-S connector is compatible with lead-free soldering processes. Samtec recommends following the IPC J-STD-020D standard for lead-free soldering.
The recommended torque value for the FWJ-08-01-T-S connector's screws is 0.5-1.5 N·m (4-12 in·lb). Over-torquing can damage the connector or the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FWJ-08-01-T-S Overview

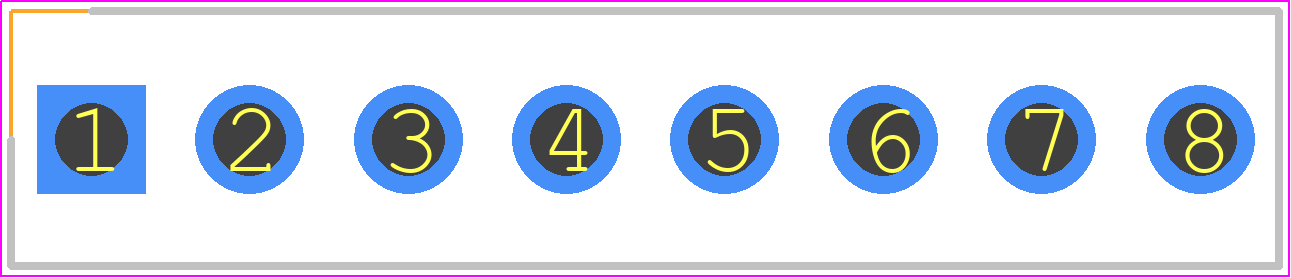

Use the download button to access the FWJ-08-01-T-S schematic symbol, PCB footprint, and 3D model.
