- Part Number FWS-10-01-T-S
- Manufacturer SAMTEC
- Pin Count 10
- Part Category Connector
- Package Category Header, Vertical

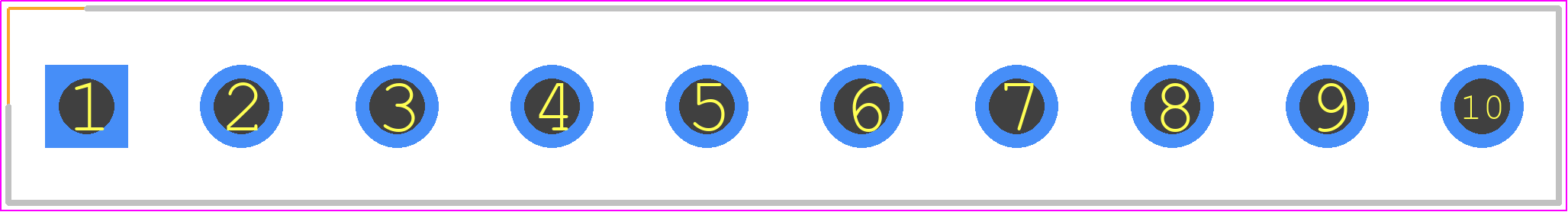

- Footprint Name Header, Vertical - FWS-10-01-T-S
- Released Date Jun 11, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FWS-10-01-T-S Details
-
Manufacturer Part Number:
FWS-10-01-T-S
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Malaysia, USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
2 Weeks, 1 Day
-
Manufacturer:
Samtec Inc
-
YTEOL:
7
FWS-10-01-T-S Frequently Asked Questions (FAQs)
-
The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
-
Yes, the FWS-10-01-T-S connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
-
The maximum operating temperature for the FWS-10-01-T-S connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
-
The FWS-10-01-T-S connector has a moisture-resistant design, but it's not fully waterproof. Samtec recommends following their guidelines for environmental sealing and using additional protection measures if the connector will be exposed to harsh environments.
-
The recommended mating cycle for the FWS-10-01-T-S connector is 500-1000 cycles, depending on the application and environmental conditions. Samtec recommends following their guidelines for connector mating and unmating to ensure reliable connections.
