FX16-21S-0.5SV - Hirose

Description: FFC & FPC Connectors 21P RECEPTACLE .5MM PITCH

Download FX16-21S-0.5SV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

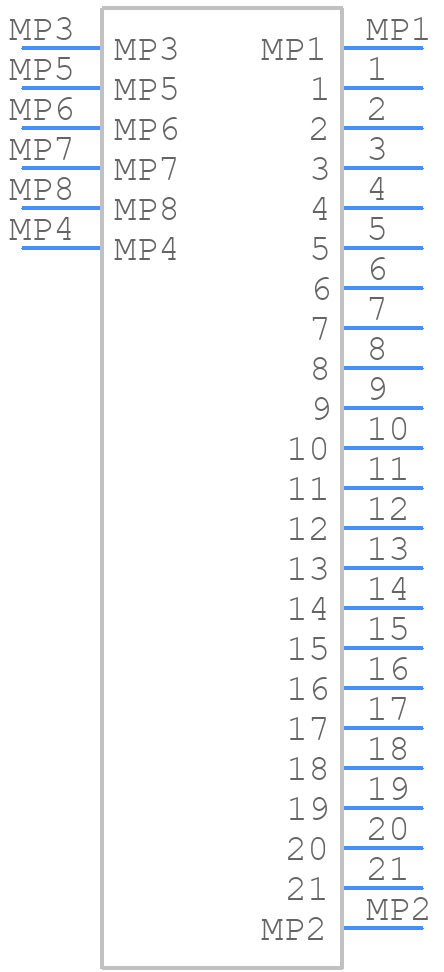

FX16-21S-0.5SV - Hirose - PCB symbol
click to zoom
PCB Footprints
FX16-21S-0.5SV - Hirose PCB footprint - Other - Other - FX16-21S-0.5SV-2
click to zoom
3D Models
FX16-21S-0.5SV - Hirose - 3D model - Other - FX16-21S-0.5SV-2
click to zoom

FX16-21S-0.5SV Details

  • Manufacturer Part Number:

    FX16-21S-0.5SV

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    21

  • UL Flammability Code:

    94V-0
