The recommended torque value is 0.5 N·m to 1.5 N·m (5.5 in·lb to 13.3 in·lb) for the screws on the FX18-40P-0.8SV10 connector.
Yes, the FX18-40P-0.8SV10 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial machinery, automotive, and aerospace.
Yes, the FX18-40P-0.8SV10 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
The FX18-40P-0.8SV10 connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent mating and unmating.
Yes, the FX18-40P-0.8SV10 connector is designed for automated assembly and inspection systems, with features such as pick-and-place compatibility and visual inspection markers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FX18-40P-0.8SV10 Overview

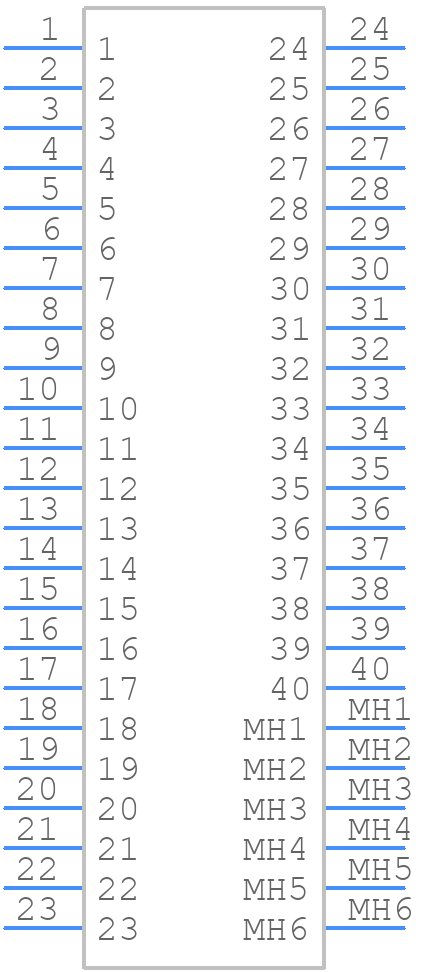

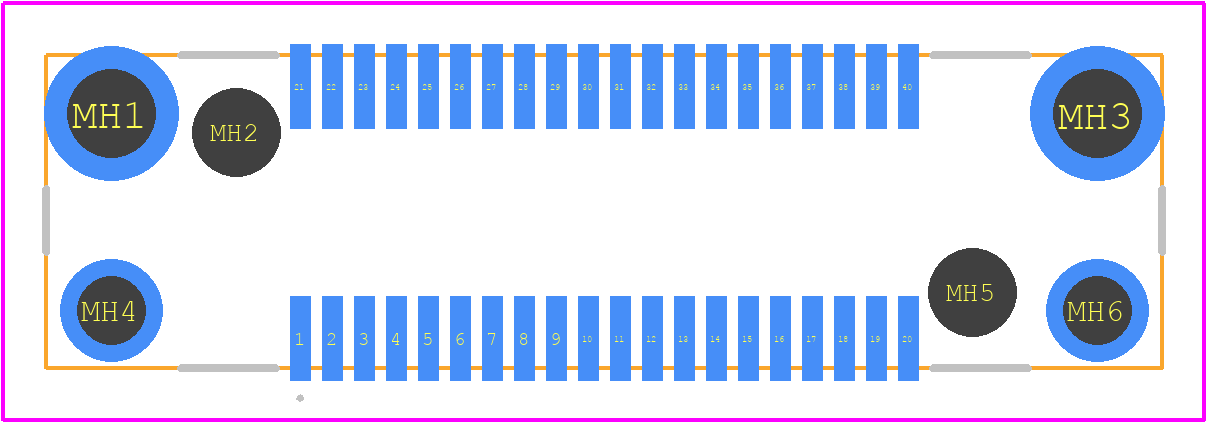

Use the download button to access the FX18-40P-0.8SV10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX18-,
or try a keyword search, such as Headers and Edge Type Connectors
