FX18A-180P-0.8SH - Hirose

Description: 180 Position Connector Header, Outer Shroud Contacts Surface Mount, Right Angle Gold

Download FX18A-180P-0.8SH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FX18A-180P-0.8SH - Hirose - PCB symbol
click to zoom
PCB Footprints

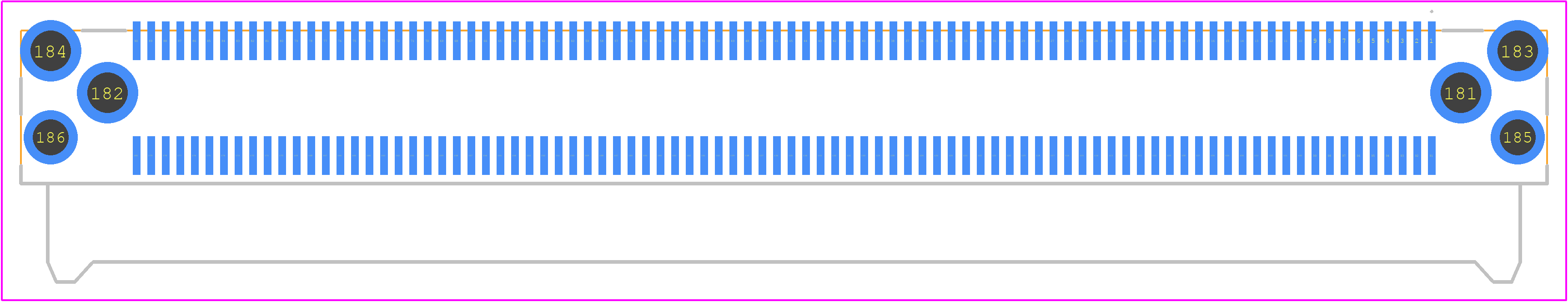

FX18A-180P-0.8SH - Hirose PCB footprint - Other - Other - FX18A-180P-0.8SH-1
click to zoom

FX18A-180P-0.8SH Details

  • Manufacturer Part Number:

    FX18A-180P-0.8SH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Termination:

    GOLD

  • JESD-609 Code:

    e4

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX18A-180P-0.8SH Overview

Use the download button to access the FX18A-180P-0.8SH schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FX18A, or try a keyword search, such as Headers and Edge Type Connectors
