FX26-30P-1SV - Hirose

Description: 30 Position Connector Plug, Floating Surface Mount Gold

Download FX26-30P-1SV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

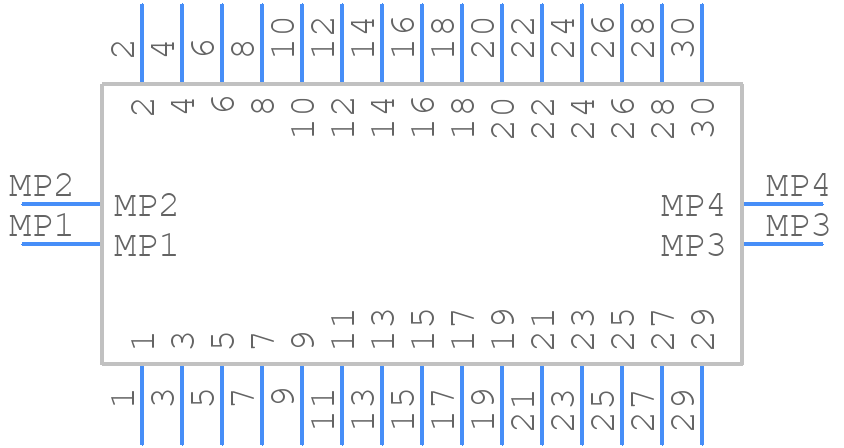

FX26-30P-1SV - Hirose - PCB symbol
click to zoom
PCB Footprints

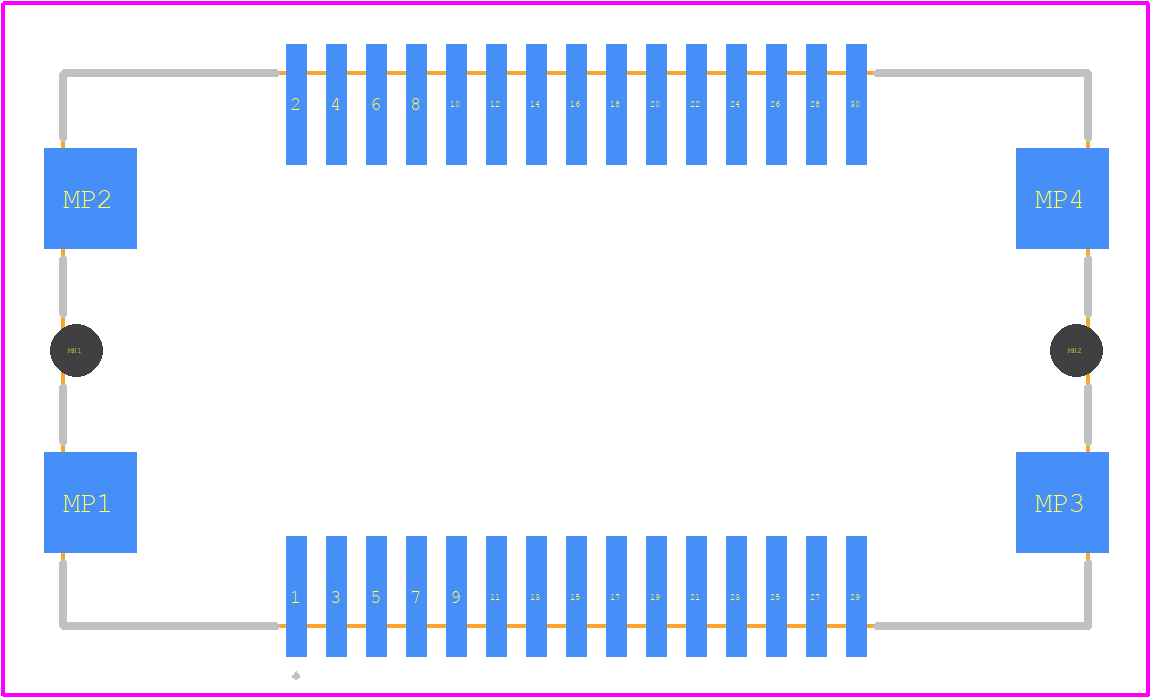

FX26-30P-1SV - Hirose PCB footprint - Other - Other - FX26-30P-1SV-1
click to zoom
3D Models
FX26-30P-1SV - Hirose - 3D model - Other - FX26-30P-1SV-1
click to zoom

FX26-30P-1SV Details

  • Manufacturer Part Number:

    FX26-30P-1SV

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    BOARD STACKING CONNECTOR

FX26-30P-1SV Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the FX26-30P-1SV connector is 500 cycles.
  • Yes, the FX26-30P-1SV connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial equipment, automotive systems, and more.
  • The operating temperature range for the FX26-30P-1SV connector is -40°C to 105°C.
  • Yes, the FX26-30P-1SV connector is designed for automated assembly and can be easily integrated into automated production lines.
  • The typical lead time for delivery of the FX26-30P-1SV connector varies depending on the region and quantity, but it is usually around 6-12 weeks.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX26-30P-1SV Overview

Use the download button to access the FX26-30P-1SV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX26-, or try a keyword search, such as Headers and Edge Type Connectors
