The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the FX2CA-40S-1.27DSAL(71) connector is designed to withstand vibrations up to 10 Hz to 2,000 Hz, with an amplitude of 1.5 mm (0.06 in) in the X, Y, and Z directions. However, it's crucial to ensure proper mounting and screw locking to maintain the connector's reliability in such environments.
The FX2CA-40S-1.27DSAL(71) connector is rated for operating temperatures between -40°C to 105°C (-40°F to 221°F) and can withstand humidity up to 90% RH. However, it's essential to consider the specific environmental conditions of your application and consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector's reliability.
The FX2CA-40S-1.27DSAL(71) connector is rated for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on factors such as the quality of the mating process, the cleanliness of the connector, and the environmental conditions.
The FX2CA-40S-1.27DSAL(71) connector is designed to be compatible with other Hirose connectors that share the same interface and pitch. However, it's essential to consult with Hirose Electric Co Ltd or a qualified engineer to ensure compatibility with connectors from different manufacturers, as the mating interface and performance may vary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FX2CA-40S-1.27DSAL(71) Overview

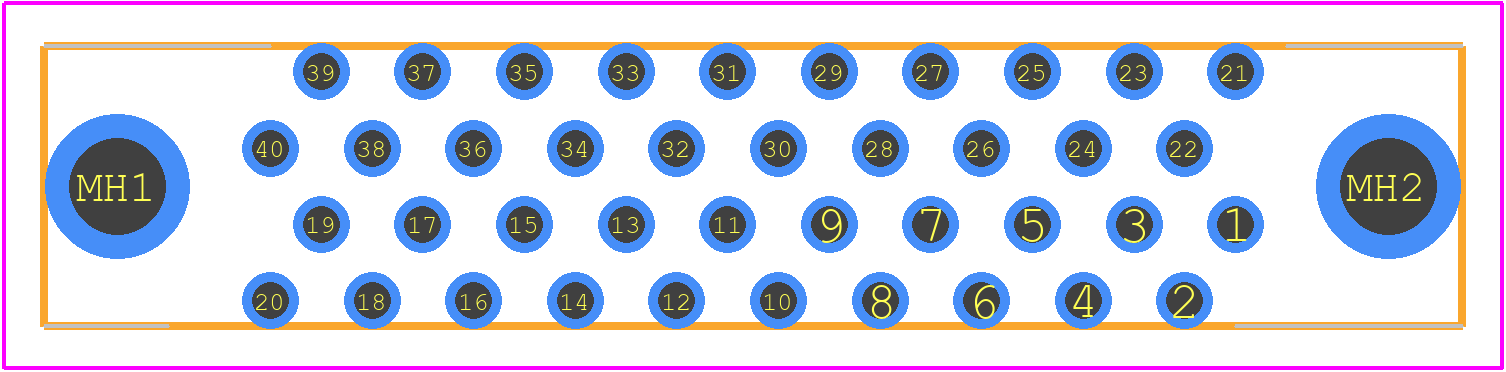

Use the download button to access the FX2CA-40S-1.27DSAL(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX2CA,
or try a keyword search, such as Telecom and Datacom Connectors
