FX2CA2-68S-1.27DSAL(71) - Hirose

Description: Hirose FX2 Series 1.27mm 68 Way 2 Row Straight PCB Socket Through Hole Board to Board

Download FX2CA2-68S-1.27DSAL(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FX2CA2-68S-1.27DSAL(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

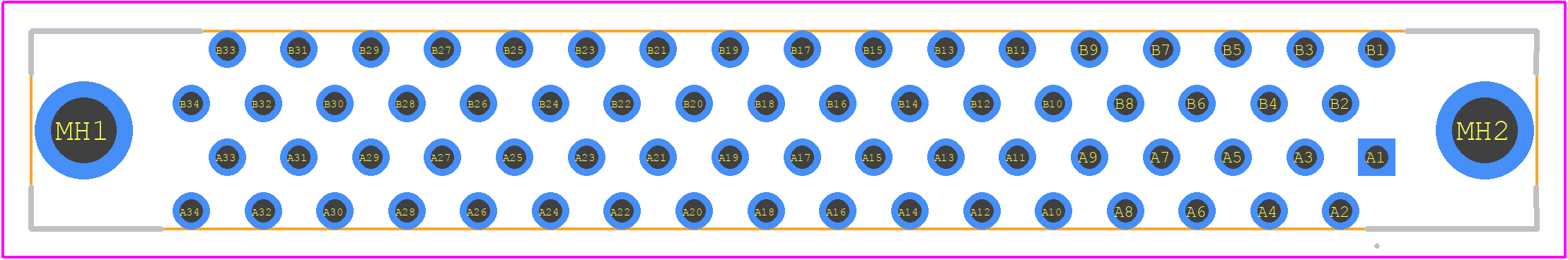

FX2CA2-68S-1.27DSAL(71) - Hirose PCB footprint - Other - Other - FX2CA2-68S-1.27DSAL(71)-2
click to zoom
3D Models
FX2CA2-68S-1.27DSAL(71) - Hirose - 3D model - Other - FX2CA2-68S-1.27DSAL(71)-2
click to zoom

FX2CA2-68S-1.27DSAL(71) Details

  • Manufacturer Part Number:

    FX2CA2-68S-1.27DSAL(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    7.4

  • Connector Type:

    BOARD STACKING CONNECTOR

FX2CA2-68S-1.27DSAL(71) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (5 gf·cm to 15 gf·cm) for the screw locks.
  • Yes, the FX2CA2-68S-1.27DSAL(71) connector is designed to support high-speed signals up to 10 Gbps, making it suitable for USB 3.0 and SATA III applications.
  • The operating temperature range for the FX2CA2-68S-1.27DSAL(71) connector is -40°C to 85°C (-40°F to 185°F).
  • Yes, the FX2CA2-68S-1.27DSAL(71) connector is designed to be resistant to humidity and vibration, making it suitable for use in harsh environments. However, it's essential to follow proper installation and sealing procedures to ensure reliability.
  • The mating cycle rating for the FX2CA2-68S-1.27DSAL(71) connector is 500 cycles.
