Part Image

FX8-40S-SV(21) - Hirose

Description: Hirose FunctionMAX FX8 Series 0.6mm 40 Way 1 Row Vertical PCB Socket Surface Mount Board to Board

Download FX8-40S-SV(21) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

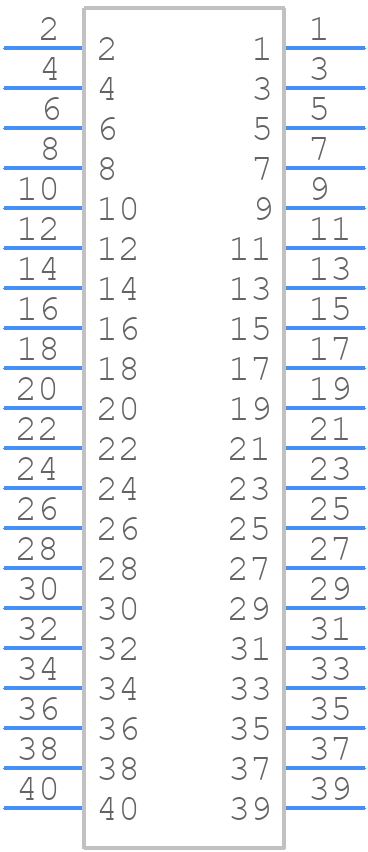

FX8-40S-SV(21) - Hirose - PCB symbol
click to zoom
PCB Footprints
FX8-40S-SV(21) - Hirose PCB footprint - Other - Other - FX8-40S-SV(21)-3
click to zoom
3D Models
FX8-40S-SV(21) - Hirose - 3D model - Other - FX8-40S-SV(21)-3
click to zoom

FX8-40S-SV(21) Details

  • Manufacturer Part Number:

    FX8-40S-SV(21)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    2

  • Additional Feature:

    LOW PROFILE

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

FX8-40S-SV(21) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, the FX8-40S-SV(21) connector is designed to withstand high-vibration environments. It has a rugged design and a secure locking mechanism that ensures reliable connections even in harsh conditions.
  • The maximum operating temperature range for the FX8-40S-SV(21) connector is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings for different applications.
  • Yes, the FX8-40S-SV(21) connector is designed to be compatible with automated assembly processes. It has a compact design and a simple mating mechanism that makes it easy to integrate into automated assembly lines.
  • The typical lead time for delivery of the FX8-40S-SV(21) connector varies depending on the region and the distributor. However, it's usually around 4-6 weeks for standard orders. Expedited delivery options may be available upon request.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

FX8-40S-SV(21) Overview

Use the download button to access the FX8-40S-SV(21) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX8-4, or try a keyword search, such as Headers and Edge Type Connectors
