FX8C-140S-SV(68) - Hirose

Description: Board to Board & Mezzanine Connectors

Download FX8C-140S-SV(68) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FX8C-140S-SV(68) - Hirose - PCB symbol
click to zoom
PCB Footprints

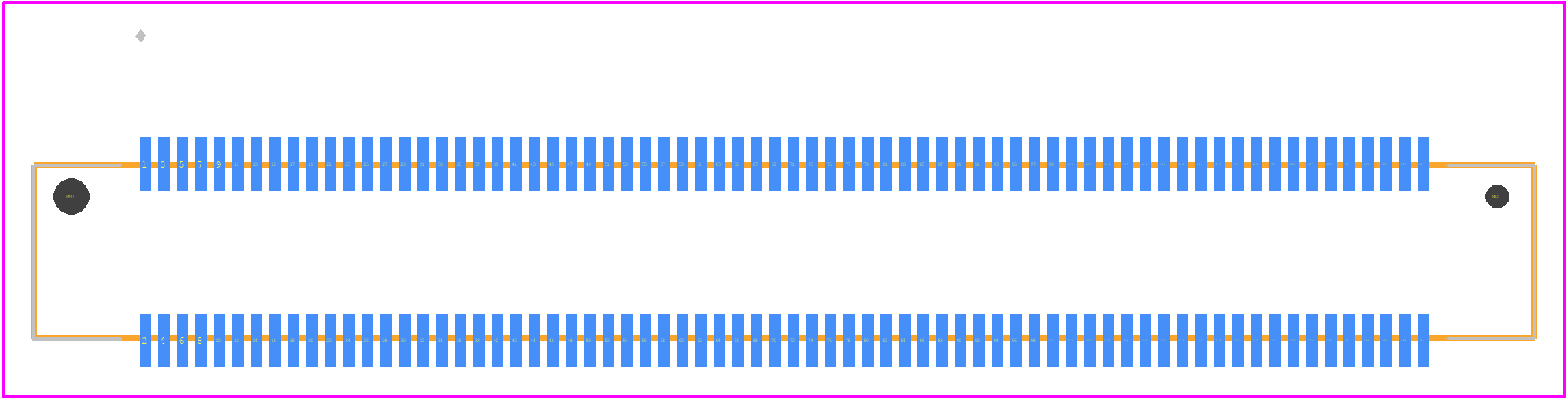

FX8C-140S-SV(68) - Hirose PCB footprint - Other - Other - FX8C-140S-SV(68)-1
click to zoom
3D Models
FX8C-140S-SV(68) - Hirose - 3D model - Other - FX8C-140S-SV(68)-1
click to zoom

FX8C-140S-SV(68) Details

  • Manufacturer Part Number:

    FX8C-140S-SV(68)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    2

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    140

  • UL Flammability Code:

    94V-0
