FXLP34P5X - onsemi

Description: tPD4 ns typ for 3.0V to 3.6V VCC5 ns typ for 2.3V to 2.7V VCC6 ns typ for 1.65V to 1.95V VCC7 ns typ for 1.40V to 1.60V VCC11 ns typ for 1.10V to 1.30V VCC27 ns typ for 1.0V VCC; Static Drive (IOH/IOL)±2.6 mA @ 3.00V VCC±2.1 mA @ 2.30V VCC±1.5 mA @ 1.65V VCC±1.0 mA @ 1.40V VCC±0.5 mA @ 1.10V VCC±20 µA @ 1.0V VCC; 4.6V tolerant inputs and outputs; Converts any voltage (1.0V to 3.6V) to (1.0V to 3.6V); Power-Off high impedance inputs and outputs; Ultra low dynamic power; 1.0V to 3.6V VCC supply operation; Use

Download FXLP34P5X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

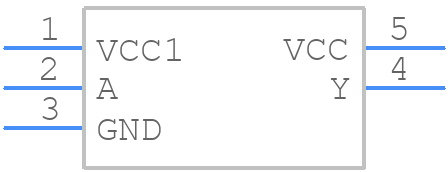

Symbol
FXLP34P5X - onsemi - PCB symbol
click to zoom
PCB Footprints
FXLP34P5X - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - 5-Lead SC70 EIAJ SC-88a 1.25mm Wide
click to zoom
3D Models
FXLP34P5X - onsemi - 3D model - SOT23 (5-Pin) - 5-Lead SC70 EIAJ SC-88a 1.25mm Wide
click to zoom

FXLP34P5X Details

  • Manufacturer Part Number:

    FXLP34P5X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-88A-5 / SC-70-5

  • Package Description:

    SC-70, 5 PIN

  • Manufacturer Package Code:

    419AC

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8

FXLP34P5X Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Use a heat sink with a thermal interface material, ensure good airflow, and consider derating the device's power dissipation according to the datasheet's thermal derating curve.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended, placed as close to the VIN pin as possible, to filter out input noise and ensure stable operation.
  • Use a shielded inductor, keep the switching node (SW) away from sensitive nodes, and consider adding a common-mode choke or EMI filter to reduce radiated emissions.
  • The maximum allowed voltage on the EN pin is 6V. Ensure proper startup by connecting a 1kΩ to 10kΩ pull-up resistor from EN to VIN, and a 100nF to 1uF capacitor from EN to GND.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FXLP34P5X Overview

Use the download button to access the FXLP34P5X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FXLP3, or try a keyword search, such as Level Translators
