FXPQ3115BVT1 footprint, schematic symbol and 3D model by NXP

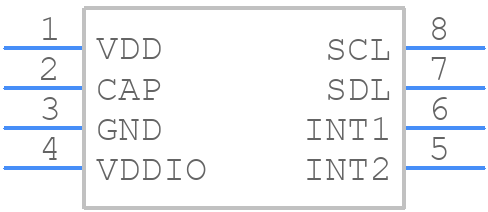

Symbol

click to zoom

PCB Footprints

FXPQ3115BVT1 - NXP PCB footprint - Other - Other - FXPQ3115BVT1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FXPQ3115BVT1
Part Number FXPQ3115BVT1
Manufacturer NXP
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - FXPQ3115BVT1-1
Released Date Aug 20, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FXPQ3115BVT1 Details

Manufacturer Part Number:
FXPQ3115BVT1
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
LGA-8
Reach Compliance Code:
Compliant
HTS Code:
8542.39.00.01
Manufacturer:
NXP Semiconductors
YTEOL:
0
Body Breadth:
3 mm
Body Height:
1.1 mm
Body Length or Diameter:
5 mm
Mounting Feature:
SURFACE MOUNT
Number of Bits:
20
Operating Current-Max:
2 mA
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Interface Type:
I2C INTERFACE
Output Range:
0.1-0.9V
Output Type:
DIGITAL VOLTAGE
Package Shape/Style:
RECTANGULAR
Port Type:
HOLE
Pressure Range-Max:
15.9 Psi
Pressure Range-Min:
2.9 Psi
Pressure Sensing Mode:
ABSOLUTE
Sensors/Transducers Type:
PRESSURE SENSOR, MEMS, PIEZORESISTIVE
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
1.95 V
Surface Mount:
YES
Termination Type:
SOLDER

FXPQ3115BVT1 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern around the device.
Implement a robust power-on reset circuit, ensure a stable voltage supply, and consider using a thermistor or thermocouple to monitor temperature. Also, follow the recommended operating conditions and derating guidelines.
Use a shielded enclosure, ensure proper grounding, and follow best practices for PCB layout and routing. Implement EMI filters and shielding on I/O lines, and consider using a common-mode choke.
Use the lowest possible voltage supply, enable power-saving modes, and optimize the clock frequency. Consider using a low-dropout regulator and implementing a power-gating strategy.
Perform functional testing, including boundary scan and JTAG testing. Validate the device's performance using a combination of simulation, emulation, and physical prototyping.

Trust Checks

Expert Contribution

System Verified

Community Approved

FXPQ3115BVT1 Overview

Use the download button to access the FXPQ3115BVT1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FXPQ3, or try a keyword search, such as Pressure Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
