- Part Number FXPS7250DS4T1
- Manufacturer NXP
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - H-PVQFN-16
- Released Date Mar 14, 2023
- Last Modified Date Mar 15, 2023 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
FXPS7250DS4T1 Details
-
Manufacturer Part Number:
FXPS7250DS4T1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
Sensors/Transducers Type:
PRESSURE SENSOR,CAPACITIVE
FXPS7250DS4T1 Frequently Asked Questions (FAQs)
-
A good PCB layout is crucial for the FXPS7250DS4T1. Ensure a solid ground plane, keep the device away from high-frequency sources, and use a 4-layer PCB with a dedicated power plane. Refer to NXP's application note AN11542 for detailed guidelines.
-
To minimize power consumption, set the device to the lowest possible frequency, use the lowest possible voltage supply, and enable the power-saving features like the Low-Power Mode (LPM) and the Dynamic Voltage and Frequency Scaling (DVFS). Consult the datasheet and NXP's application notes for specific configuration details.
-
The FXPS7250DS4T1 has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink or thermal pad, and follow NXP's thermal design guidelines in the datasheet and application notes. Monitor the device temperature using the built-in thermal sensor and take corrective action if necessary.
-
For I2C interface issues, check the clock frequency, ensure proper pull-up resistors, and verify the slave address. Use a logic analyzer or oscilloscope to debug the I2C bus signals. Consult NXP's I2C bus specification and application notes for troubleshooting guidelines.
-
To ensure EMC and EMI compliance, follow NXP's guidelines for PCB layout, component selection, and shielding. Use a metal shield or can to enclose the device, and ensure proper grounding and decoupling. Consult NXP's application notes and the relevant industry standards (e.g., IEC 61000-4-2) for more information.
Trust Checks
Community Provided
System Verified
Community Approved
FXPS7250DS4T1 Overview

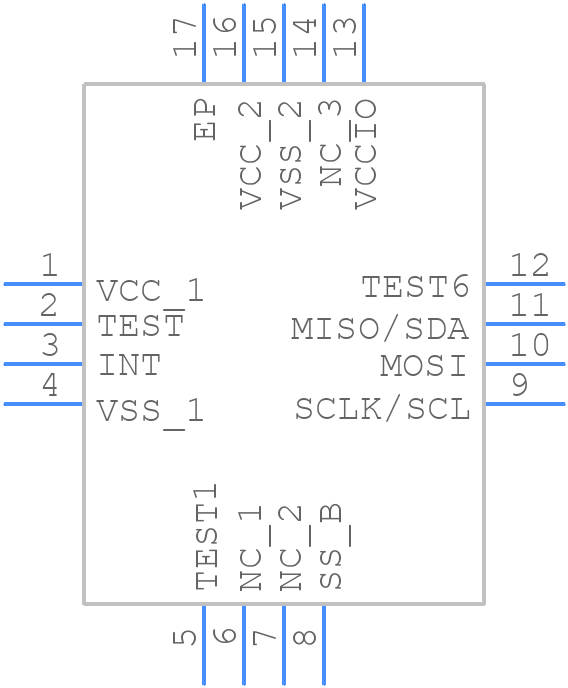

Use the download button to access the FXPS7250DS4T1 schematic symbol, PCB footprint, and 3D model.
