FYT-5631AUHR-21 - Foryard

Description: Display: LED; 7-segment; 14.2mm; 0.56"; No.char: 3; red; 30÷60mcd

Download FYT-5631AUHR-21 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

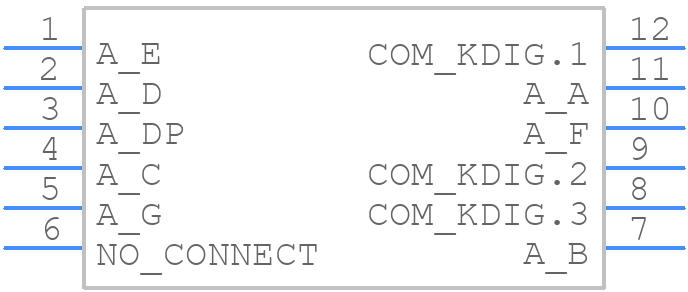

Symbol
FYT-5631AUHR-21 - Foryard - PCB symbol
click to zoom

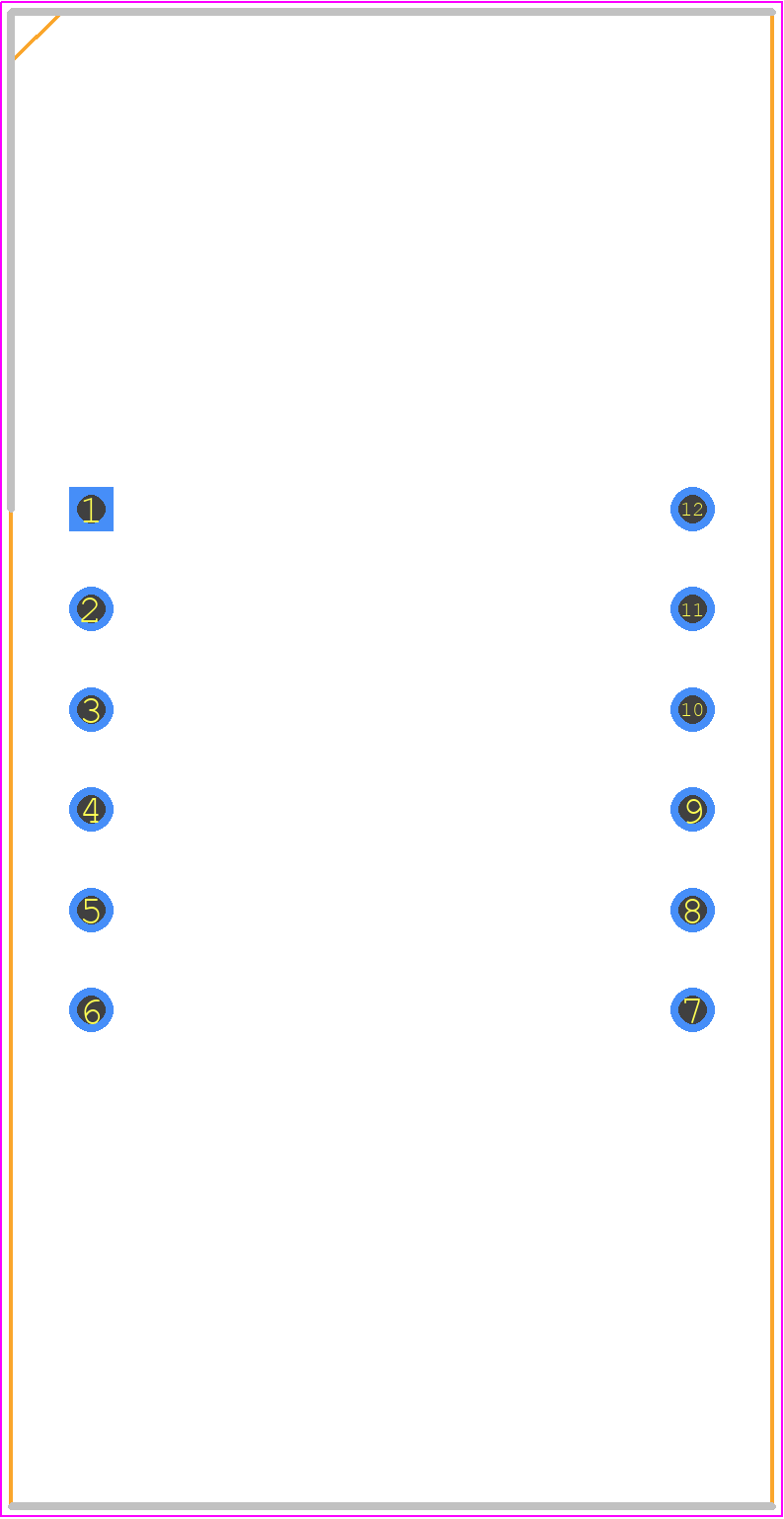

PCB Footprints
FYT-5631AUHR-21 - Foryard PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 12 lead DIP_2024
click to zoom

FYT-5631AUHR-21 Details

  • Manufacturer Part Number:

    FYT-5631AUHR-21

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Foryard

  • Color:

    ULTRA HIGH RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT

  • Display Height:

    13.2 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Luminous Intensity-Min:

    0.02 cd

  • Luminous Intensity-Nom:

    35.0 mcd

  • Number of Characters:

    3

  • Number of Functions:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Packing Method:

    FOAM

  • Peak Wavelength:

    640 nm

FYT-5631AUHR-21 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for FYT-5631AUHR-21 is -40°C to 100°C.
  • Yes, FYT-5631AUHR-21 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The typical operating current of FYT-5631AUHR-21 is 20mA, but it can vary depending on the specific application and operating conditions.
  • Yes, FYT-5631AUHR-21 has built-in ESD protection, with a human body model (HBM) rating of 2kV and a machine model (MM) rating of 200V.
  • The recommended PCB layout and land pattern for FYT-5631AUHR-21 can be found in the Foryard application note AN-XXXX, which provides detailed guidelines for optimal PCB design and layout.
